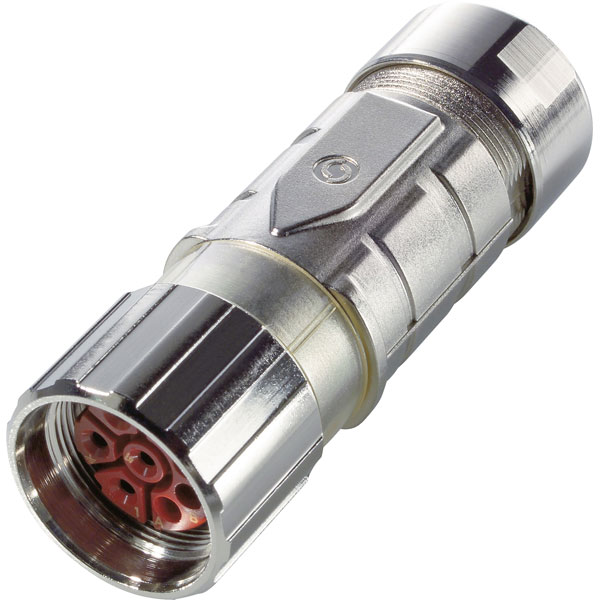

LappKabel EPIC® LS1 D6 8P Circular Connector Cable Mount Female Contacts 3+PE+4

LappKabel
Extended range
Order Code:

63-5209

Brand: LappKabel MPN: 76124000 EAN-13: 4044773490428
Qty Unit Price (Ex VAT)
1+ £28.16
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 9 days

A circular cable mounting connector with female contacts, ideal for servo motors and power supplies. It offers a high power rating in a compact space and is the optimal solution for electric motors.
  • Colour: Silver
  • Compatible with: 8-pin insert
  • Connector type: Socket, straight
  • Core diameter: 7.5 to 15.5mm²
  • Leading contact (PE): Yes
  • Material: Nickel plated die cast zinc
  • Protection type: IP68
  • Rated voltage: 1mm contact: 250V
  • 2mm contact: 630V
  • 8 pin (3 + PE + 4)
  • Temperature range: -25 to +125°C
  • Test current: 1mm contact: 7A @ 1mm²
  • 2mm contact: 22A @ 2.5mm²
  • LappKabel part No.: 76124000
  • LappKabel type: EPIC® LS1 D6

Includes female contacts. Crimp range 0.5 to 2.5mm².
Conductor Size 0.5 to 2.5mmmm²
Current Rating 7A
Gender Female
Number of Ways 8
Shape Circular
Suitable for N/A
Termination Crimp
