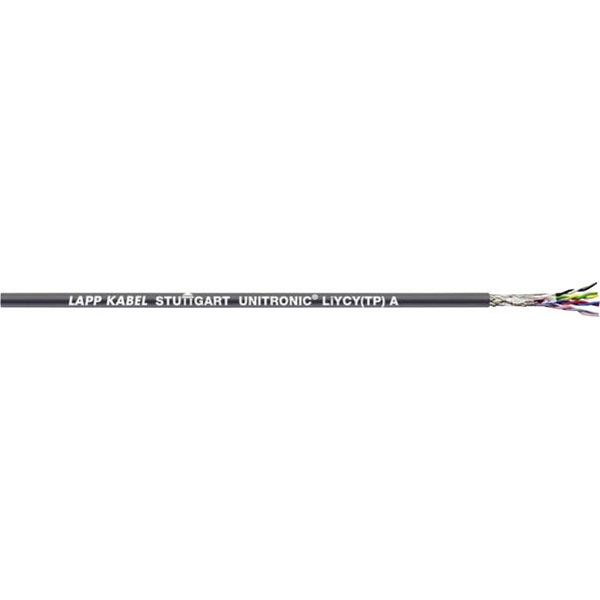

UNITRONIC® LIYCY UL/CSA cables are largely similar to the UNITRONIC® LIYCY cables but the sheath colour is dark grey (chrome). Because of the UL/CSA approval, the cable is used for wiring appliances, machinery and plant which are intended for export into the North American market.
| Type |
Data Cable |
| AWG max. |
24 |
| Bend radius |
For flexible use: 15 x external Ø · When fixed: 6 x external Ø |
| Bend radius (no. of ODs for fixed installation) |
6 |
| Bend radius (no. of ODs for flexible installation) |
15 |
| Certification marks |
In accordance with VDE 0812. |
| Core layout |
Braid, fine strands |
| Cross section (each core) |
0.23mm² |
| Factory colour |
Dark grey |
| Halogen-free |
No |
| Insulation material |
PVC |
| Manufacturer part # |
66233/1 |
| Max. length sold by the metre |
305m |
| Max. temperature range (fixed installation) |
+80°C |
| Max. temperature range (flexible installation) |
+70°C |
| Min. temperature range (fixed installation) |
-40°C |
| Min. temperature range (flexible installation) |
-5°C |
| Misc Attribute |
UNITRONIC® LiYCY (TP) UL/CSA DIN |
| No. of leads |
6 |
| Outside Ø |
6.60mm |
| Packaged |
No |
| Peak operating voltage |
(not for heavy current applications) 250V |
| Shielded |
Yes |
| Sold per metre |
Yes |
| Temperature Range |
-30 - +80 ºC°C |
| Twisted pair cabling (part 1) |
Yes (1) |
| Wire ID code |
DIN 47100 |
