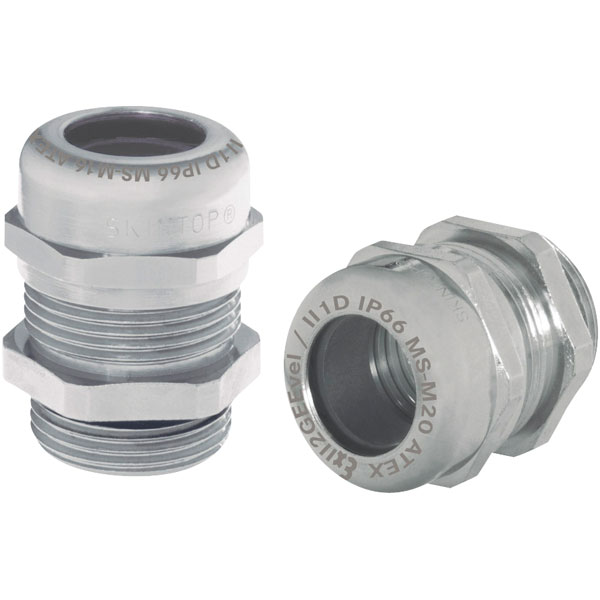

LappKabel 53112730 M25 x 1.5 EX Cable Gland MS-M ATEX Brass 9-17mm

A LappKabel SKINTOP® MS-M ATEX Nickel Plated Brass Cable Gland with metric connecting thread. This high quality cable gland is reliable and has been designed for use with electrical equipment in areas where there is a risk of explosion, especially in the chemical and petrochemical industry.

The cable entries are sufficient to the requirements of explosion protection to equipment group II and equipment category 2G and 1D, type of protection Increased Safety 'e'. (in acc. to EN 60079-0, EN60079-7, EN 61241-1).

• For areas at risk to explosions
• Material: Body: nickel plated brass, insert: polyamide
• Sealing ring: CR/NBR, O-Ring: NBR
• Protection type: IP68 (up to 5 bar)
• Temperature range: -30°C to +100°C
• Type: SKINTOP® ST-M
• Supplied with clamping range: 9-17mm
• Supplied in M25x1.5
• Manufacturer's part: LappKabel 53112730
