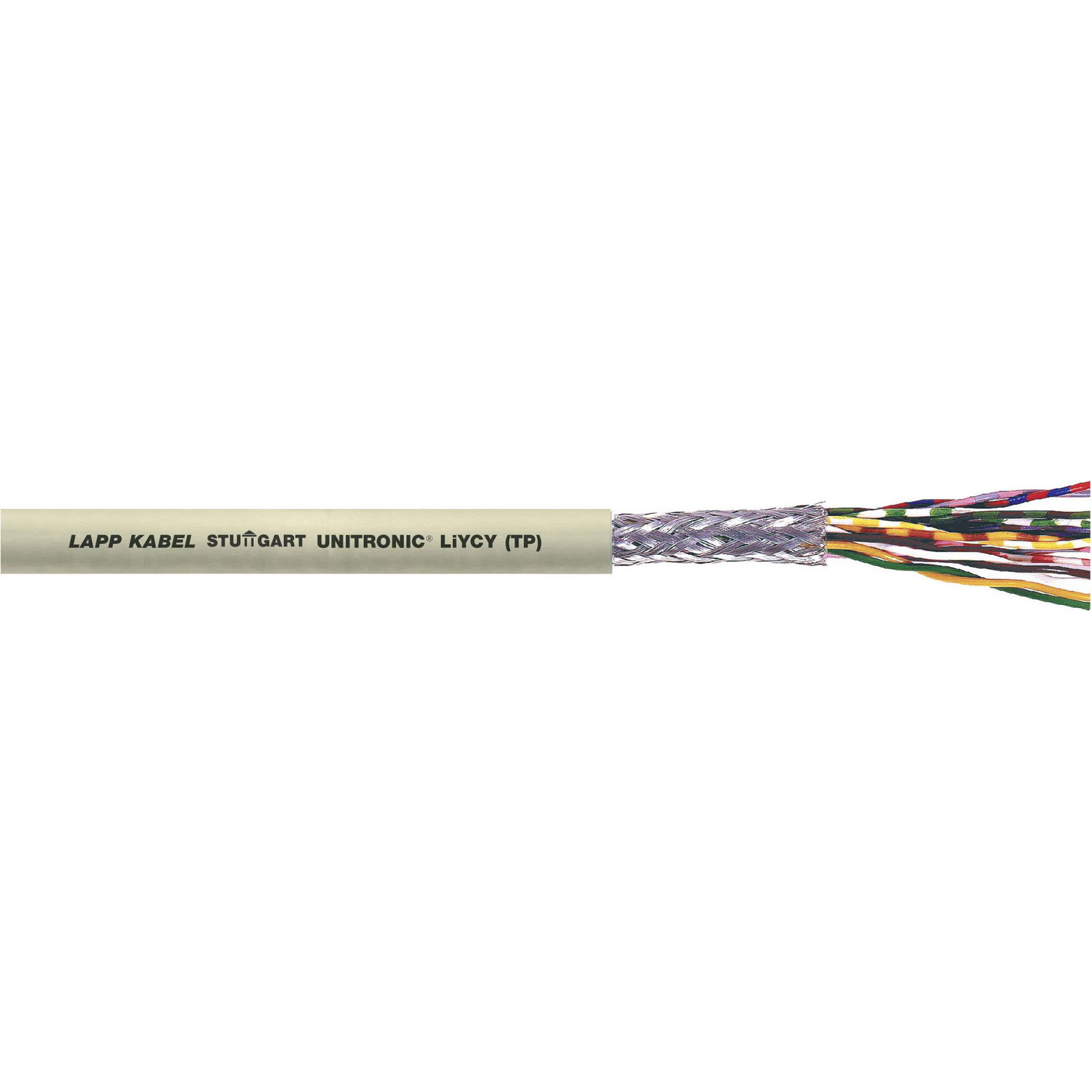

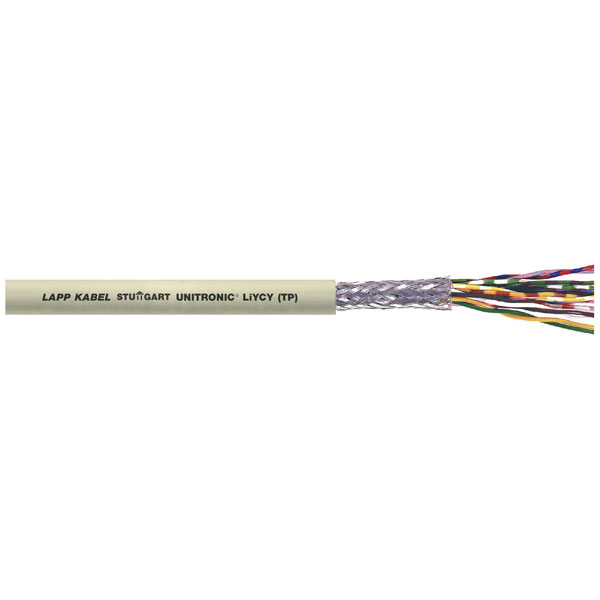

These shielded data cables are used as electronic control and signal lines for computer systems and monitoring devices, office machines, scales etc. The insulation is made of special PVC with a hard outer sheath which protects against wear while remaining flexible and allowing small cable diameters. The additional shielding ensures secure data transmission and protects against interference.
| Type |
Low Interference Cable |
| Bend radius (no. of ODs for fixed installation) |
6 |
| Bend radius (no. of ODs for flexible installation) |
15 |
| Cable type |
UNITRONIC LIYCY (TP) |
| Certification marks |
{DIN} VDE following; VDE 0814 (DIN 47414) or VDE 0812. |
| Core layout |
Finely stranded |
| Cross section |
3 x 2 x 0.25 mm² |
| Cross section (each core) |
0.25mm² |
| Factory colour |
Grey |
| Halogen-free |
No |
| Insulation |
PVC |
| Insulation material |
PVC |
| Manufacturer part # |
35801/100 |
| Max. temperature range (fixed installation) |
+80°C |
| Max. temperature range (flexible installation) |
+70°C |
| Min. temperature range (fixed installation) |
-40°C |
| Min. temperature range (flexible installation) |
-5°C |
| Misc Attribute |
UNITRONIC LIYCY (TP) 3X2X0,25 |
| No. of leads |
6 |
| Nominal voltage (details) |
50V |
| Outside Ø |
7.10mm |
| Packaged |
Yes |
| Shielded |
Yes |
| Sold per metre |
No |
| Twisted pair cabling (part 1) |
Yes (1) |
| Wire ID code |
DIN 47100 |
