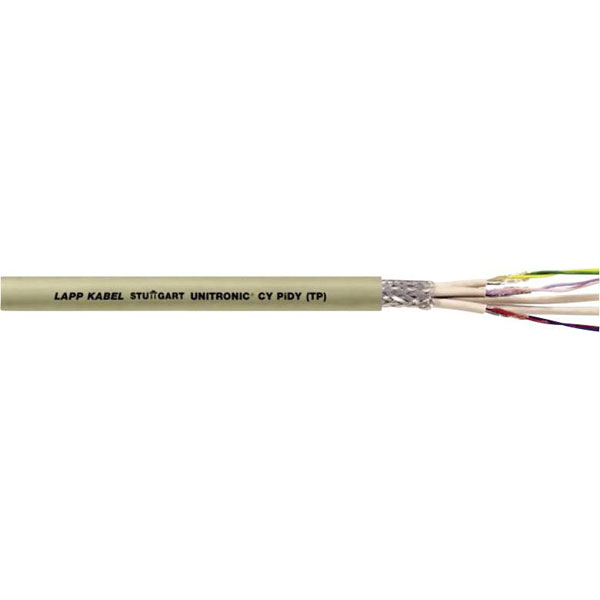

LappKabel 34253/1 data cable 5x2x0.25mm² grey double-shielded

LappKabel
Standard range
Order Code:

67-5769

Brand: LappKabel MPN: 34253/1
Qty Unit Price (Ex VAT)
1+ £4.02
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
118 in stock, despatched in 4 working days

Twisted-pair wires can often be used to transmit different signals, with respect to frequencies and voltage levels. In order to achieve a high level of transmission security, the UNITRONIC® CY PIDY (TP) is utilised, to provide double shielding from disturbance, while simultaneously reducing or eliminating interference.
Type Low Interference Cable
Bend radius Wide range of applications: 6 x external dia.
Bend radius (no. of ODs for flexible installation) 6
Certification marks In Anlehnung an VDE 0812
Core layout Braid, fine strands
Cross section (each core) 0.25mm²
Factory colour Grey
Halogen-free No
Insulation material PVC
Manufacturer part # 34253/1
Max. length sold by the metre 300m
Max. temperature range (fixed installation) +80°C
Max. temperature range (flexible installation) +70°C
Min. temperature range (fixed installation) -40°C
Min. temperature range (flexible installation) -5°C
Misc Attribute UNITRONIC® CY PIDY (TP)
No. of leads 10
Outside Ø 11.80mm
Packaged No
Peak operating voltage 250V
Shielded Yes
Sold per metre Yes
Standards CY PIDY (TP)
Temperature Range When permanently installed: -30 - +80°C
Twisted pair cabling (part 1) Yes (1)
Wire ID code DIN 47100
