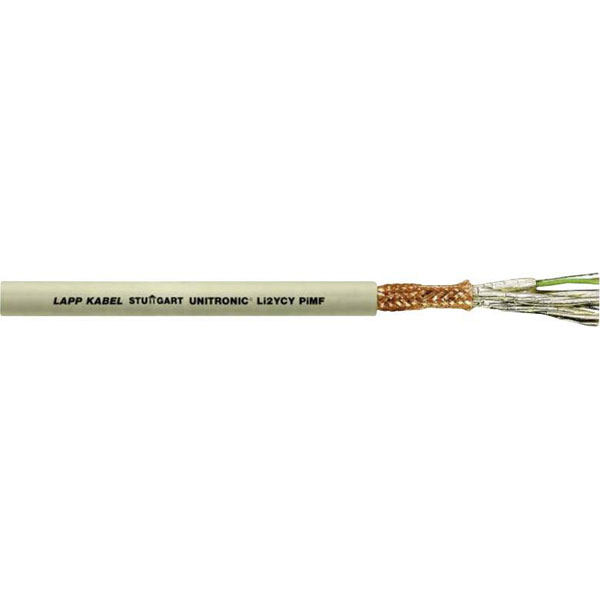

LappKabel 34042/1 data cable 4x2x0.22mm grey shielded pairs, sold per metre

LappKabel
Standard range
Order Code:

67-5845

Brand: LappKabel MPN: 34042/1
Qty Unit Price (Ex VAT)
1+ £2.96
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
33 in stock, despatched in 4 working days

The individual shielding of the pairs makes these cables highly suitable for data systems, control systems in industrial plants, transmission of sensitive signals and high bit rates, applications requiring high cross-talk attenuation, as well as circuits subjected to high levels of electrical interference.
Type Data Cable
Bend radius when fixed: 10 x external dia.
Bend radius (no. of ODs for fixed installation) 10
Bend radius (no. of ODs for flexible installation) 20
Certification marks According to VDE 0812
Core layout 7-wired cord as per VDE 0881
Cross section (each core) 0.22mm²
Factory colour Grey
Halogen-free No
Insulation material PVC
Manufacturer part # 34042/1
Max. length sold by the metre 100m
Max. temperature range (fixed installation) +80°C
Max. temperature range (flexible installation) +70°C
Min. temperature range (fixed installation) -40°C
Min. temperature range (flexible installation) -5°C
Misc Attribute UNITRONIC® Li2YCY PIMF
No. of leads 8
Packaged No
Peak operating voltage 250 V (not for heavy current applications)
Shielded Yes
Sold per metre Yes
Temperature Range Fixed: -30 - +70°C
Twisted pair cabling (part 1) Yes (1)
Wire ID code DIN 47100
