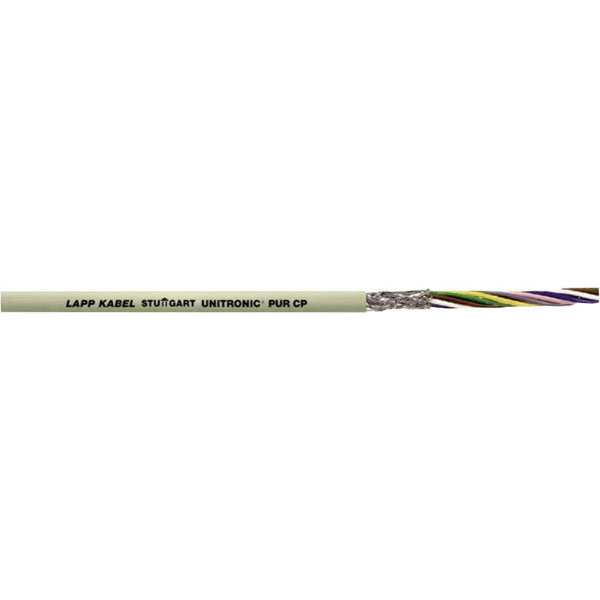

The nick resistant PUR outer sheath permits use of the data cables in an industrial environment such as an area wet with oil, and also in those places where high chemical and physical resistance are required.
| Type |
Data Cable |
| Bend radius |
Minimum bend radius for flexible application: 15 x external dia.; when laid fixed: 6 x external dia. |
| Bend radius (no. of ODs for fixed installation) |
6 |
| Bend radius (no. of ODs for flexible installation) |
15 |
| Certification marks |
{DIN} VDE following; VDE 0814 (DIN 47414) or VDE 0812. |
| Core layout |
Braid, fine strands |
| Cross section (each core) |
0.25mm² |
| Factory colour |
Pebble grey (RAL 7032) |
| Halogen-free |
No |
| Insulation material |
Polyurethane |
| Manufacturer part # |
32852/1 |
| Max. length sold by the metre |
100m |
| Max. temperature range (fixed installation) |
+80°C |
| Max. temperature range (flexible installation) |
+70°C |
| Min. temperature range (fixed installation) |
-40°C |
| Min. temperature range (flexible installation) |
-5°C |
| Misc Attribute 1 |
UNITRONIC® PUR CP (TP) |
| Misc Attribute 2 |
UNITRONIC® PUR CP TP |
| No. of leads |
8 |
| Nominal voltage (details) |
250 V (not for heavy current applications) |
| Outside Ø |
7.60mm |
| Packaged |
No |
| Shielded |
Yes |
| Sold per metre |
Yes |
| Standards |
CP (TP) |
| Temperature Range |
fixed: -30 - +80°C |
| Twisted pair cabling (part 1) |
Yes (1) |
| Wire ID code |
DIN 47100 |
