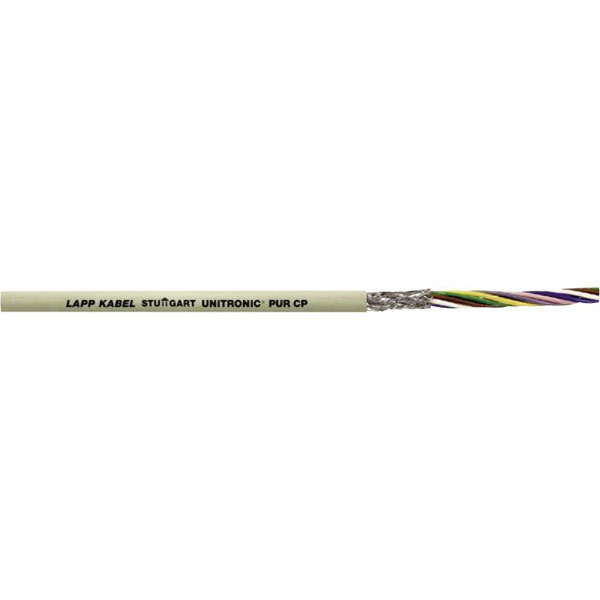

LappKabel 32801/1 data cable 3x0.25mm² grey nick-resistant PUR sheath

LappKabel
Standard range
Order Code:

67-5869

Brand: LappKabel MPN: 32801/1
Qty Unit Price (Ex VAT)
1+ £1.13
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
54 in stock, despatched in 4 working days

The nick resistant PUR outer sheath permits use of the data cables in an industrial environment such as an area wet with oil, and also in those places where high chemical and physical resistance are required.
Type Data Cable
Bend radius Wide range of applications: 15 x external dia., when permanently installed: 6 x external dia.
Bend radius (no. of ODs for fixed installation) 6
Bend radius (no. of ODs for flexible installation) 15
Certification marks In Anlehnung an VDE 0812
Core layout Braid, fine strands
Cross section (each core) 0.25mm²
Factory colour Grey
Halogen-free No
Insulation material Polyurethane
Manufacturer part # 32801/1
Max. length sold by the metre 500m
Max. temperature range (fixed installation) +80°C
Max. temperature range (flexible installation) +70°C
Min. temperature range (fixed installation) -40°C
Min. temperature range (flexible installation) -5°C
Misc Attribute UNITRONIC® PUR CP
No. of leads 3
Nominal voltage (details) 250 V (not for heavy current applications)
Outside Ø 4.70mm
Packaged No
Shielded Yes
Sold per metre Yes
Temperature Range When permanently installed: -30 - +80°C
Wire ID code DIN 47100
