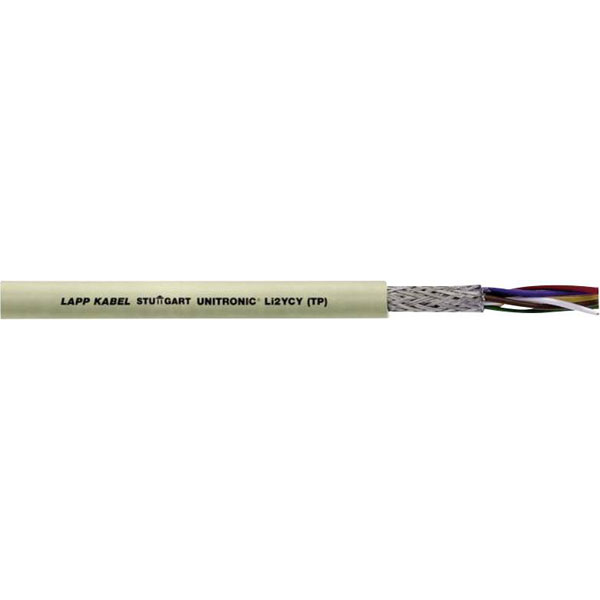

LappKabel 31320/1 data cable 2x2x0.22 mm² grey, sold per metre

LappKabel
Standard range
Order Code:

67-5786

Brand: LappKabel MPN: 31320/1
Qty Unit Price (Ex VAT)
1+ £1.73
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
45 in stock, despatched in 4 working days

These cables are designed for connection techniques such as cut-and-crimp, termi-point techniques, and connecting D-SUB 0.22 mm² plugs. Especially suitable for the cabling of data systems up to 10 Mb/s.
Type Data Cable
Bend radius Fixed laid: 7.5 x outer-Ø
Bend radius (no. of ODs for fixed installation) 7.5
Certification marks According to VDE 0812
Core layout Strand, DIN VDE in accordance with VDE 0881, 7-wire
Cross section (each core) 0.22mm²
Factory colour Grey
Halogen-free No
Insulation material PVC
Manufacturer part # 31320/1
Max. length sold by the metre 100m
Max. temperature range (fixed installation) +80°C
Max. temperature range (flexible installation) +70°C
Min. temperature range (fixed installation) -40°C
Min. temperature range (flexible installation) -5°C
Misc Attribute UNITRONIC® Li2YCY (TP)
No. of leads 4
Outside Ø 6.30mm
Packaged No
Peak operating voltage 250 V (not for heavy current applications)
Shielded Yes
Sold per metre Yes
Standards According to VDE 0812
Temperature Range Fixed laid: -30 - +70°C
Twisted pair cabling (part 1) Yes (1)
Wire ID code DIN 47100
