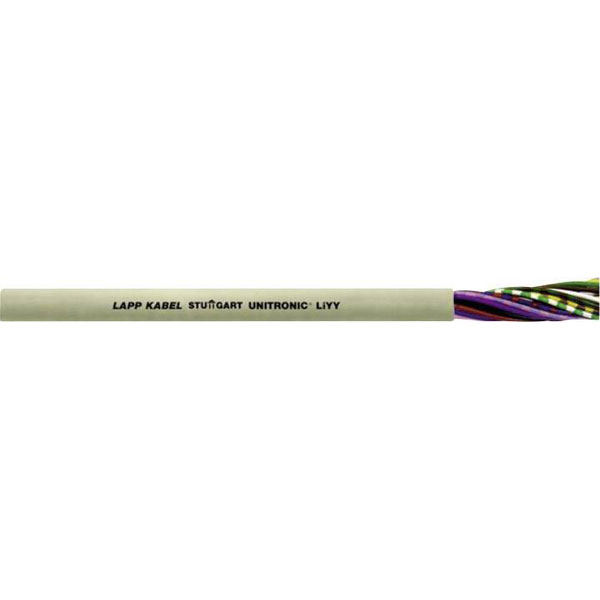

LiYY Data cables have small external -Ø depsite the high number of conductors. They have a wire-colour code according DIN 47100, but without colour repetition
Strand conductors made of bare Cu-wires, wire insulation and outer sheath PVC, wires stranded in layers, flame-resistant according to IEC 60332-1, pebble grey (RAL 7032).
Control and signal cables of electronics for computer systems, electronic control and regulation devices, office machines, scales etc.
.
| Type |
Data Cable |
| Bend radius (no. of ODs for fixed installation) |
4 |
| Bend radius (no. of ODs for flexible installation) |
10 |
| Cable features |
Flame-retardant |
| Cable type |
UNITRONIC® LiYY |
| Certification marks |
According to VDE 0812 |
| Core layout |
Finely stranded |
| Cross section |
3 x 0.14 mm² |
| Cross section (each core) |
0.14mm² |
| Factory colour |
Grey |
| Halogen-free |
No |
| Insulation material |
PVC |
| Manufacturer part # |
28203/100 |
| Max. temperature range (fixed installation) |
+80°C |
| Max. temperature range (flexible installation) |
+70°C |
| Min. temperature range (fixed installation) |
-40°C |
| Min. temperature range (flexible installation) |
-5°C |
| Misc Attribute |
UNITRONIC LIYY 3X0,14 |
| No. of leads |
3 |
| Nominal voltage (details) |
50V |
| Outside Ø |
3.40mm |
| Packaged |
Yes |
| Sold per metre |
No |
| Wire ID code |
DIN 47100 |
