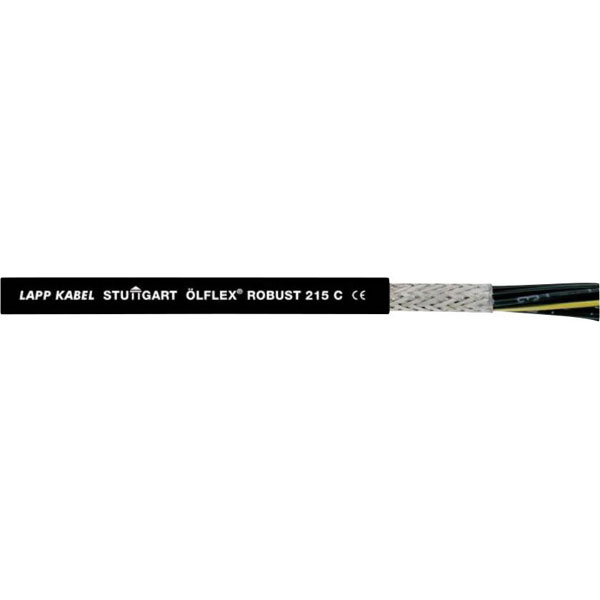

ÖLFLEX® ROBUST 215 C is a robust control cable with a braided shield, which can be used in the fields of mechanical engineering and plant construction, both indoors and outdoors. The product properties are particularly appreciated in the food and drink industries, in machine tools manufacture, laundries, car washes, the chemical industry, composting and sewage treatment plants. This cable is particularly resistant and long lived when subjected to continual cleaning processes using steam jets.
| Type |
Control Cable |
| Bend radius |
For flexible use: 20 x external dia.; when laid fixed: 6 x external dia. |
| Bend radius (no. of ODs for fixed installation) |
6 |
| Bend radius (no. of ODs for flexible installation) |
20 |
| Certification marks |
In accordance with VDE: Wires: VDE 0245/0250/0281, sheath according to VDE 0250/0281. |
| Core layout |
Finely stranded according to VDE 0295, Class 5/IEC 60228 Class5 |
| Cross section (each core) |
1.50mm² |
| Factory colour |
Black |
| Halogen-free |
Yes |
| Manufacturer part # |
22749/1 |
| Max. length sold by the metre |
100m |
| Max. temperature range (fixed installation) |
+80°C |
| Max. temperature range (flexible installation) |
+80°C |
| Min. temperature range (fixed installation) |
-50°C |
| Min. temperature range (flexible installation) |
-40°C |
| Misc Attribute 1 |
OILFLEX® ROBUST 215 C |
| Misc Attribute 2 |
ÖLFLEX® ROBUST 215 C |
| No. of leads |
3 G |
| Nominal voltage |
500V |
| Nominal voltage (details) |
300/500V |
| Nominal voltage U0 |
300V |
| Number-coded |
Yes |
| Outside Ø |
7.60mm |
| Packaged |
No |
| Sold per metre |
Yes |
| Suited for cable carriers |
No |
| Temperature Range |
Moving: -40 - +80 °C, when fixed : -50 - +80°C |
| Wire ID code |
Black wires with white number printing (VDE 0293) |
