IBS cable - for permanent installations (remote bus cable + installed remote bus cable). The maximum cable length of a bus segment for given bit rates are as follows:
500 kBit/s = max. 400 m (remote bus cable) = max. 50m (installed remote bus cable).
InterBus = one of the first field bus systems. Influence in the automotive industry.
LAPP CABLE is a member of the InterBus CLUB user organisation.
| Type |
Cable |
| Bend radius |
8 x external dia., when permanently installed |
| Bend radius (no. of ODs for fixed installation) |
8 |
| Certification marks |
DIN 19258 · EN 50254 · IEC 61158 |
| Core resistance |
Schleife: max. 186Ω/km |
| Cross section (each core) |
0.22mm² |
| Cross section (each core) (part 2) |
1.0mm² |
| Factory colour |
Violet |
| Halogen-free |
Yes |
| Insulation |
PUR |
| Insulation material |
Polyurethane |
| Manufacturer part # |
2170208/1 |
| Max. length sold by the metre |
100m |
| Max. temperature range (fixed installation) |
+80°C |
| Max. temperature range (flexible installation) |
+80°C |
| Min. temperature range (fixed installation) |
-40°C |
| Min. temperature range (flexible installation) |
-40°C |
| Misc Attribute 1 |

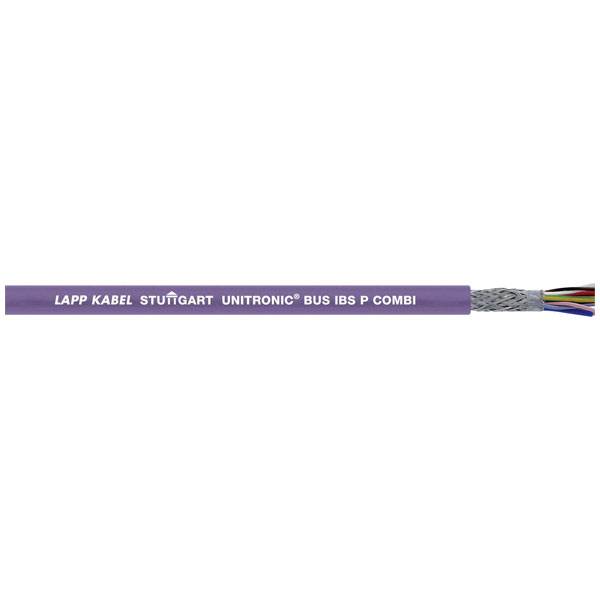

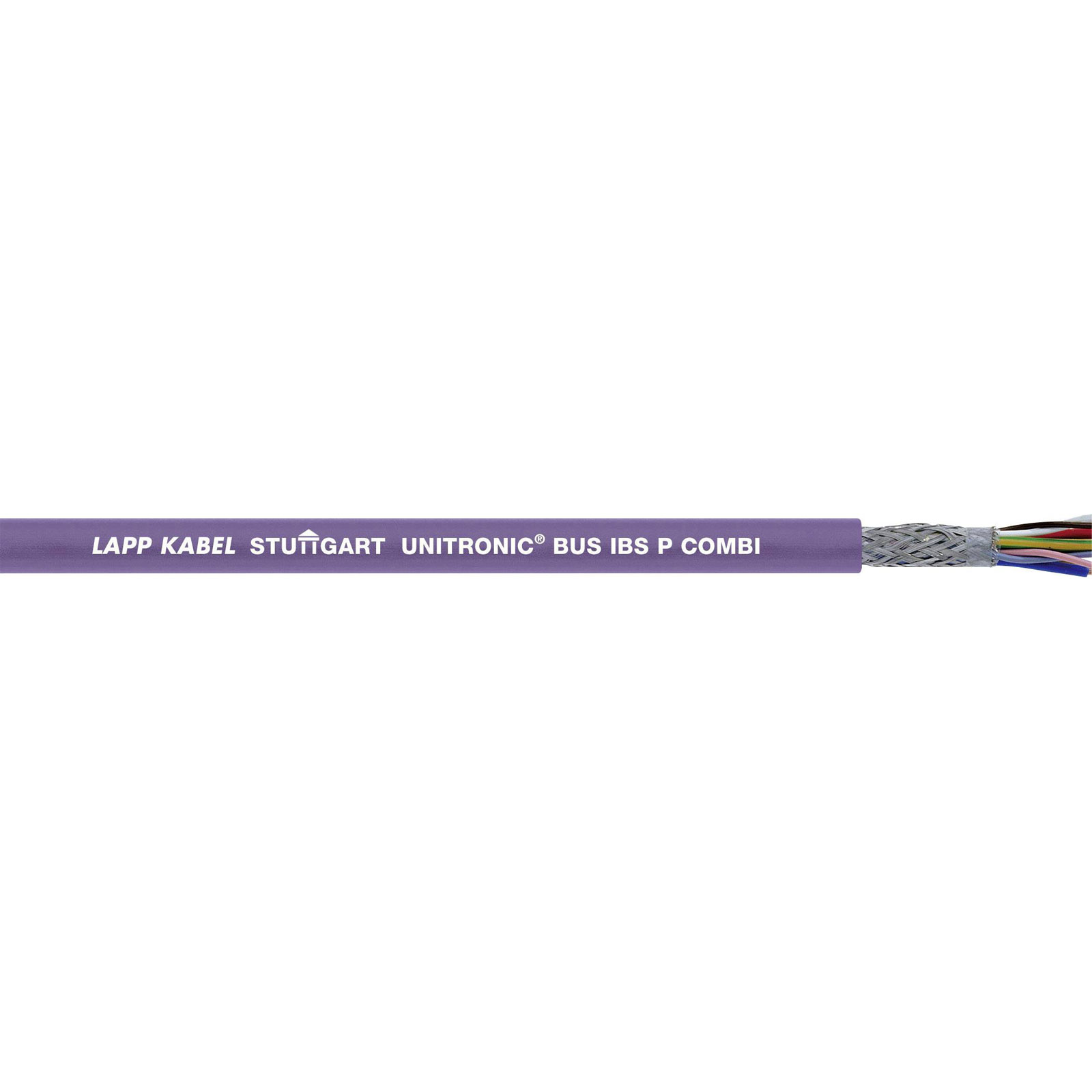

UNITRONIC® BUS IBS P COMBI |
| Misc Attribute 2 |
For fixed installation |
| Misc Attribute 3 |
Bus P COMBI IBS |
| No. of leads |
6 |
| No. of leads (part 2) |
3 |
| Nominal voltage |
250V |
| Operating capacity |
(800Hz) max. 60 nF/km |
| Outside Ø |
7.90mm |
| Packaged |
No |
| Peak operating voltage |
(not for heavy current applications) 250V |
| Shielded |
Yes |
| Sold per metre |
Yes |
| Standards |
InterBus |
| Temperature Range |
-40 - +80°C |
| Test voltage |
Ader/Ader 1500V |
| Twisted pair cabling (part 1) |
Yes (1) |
| Wave impedance |
100Ω |
