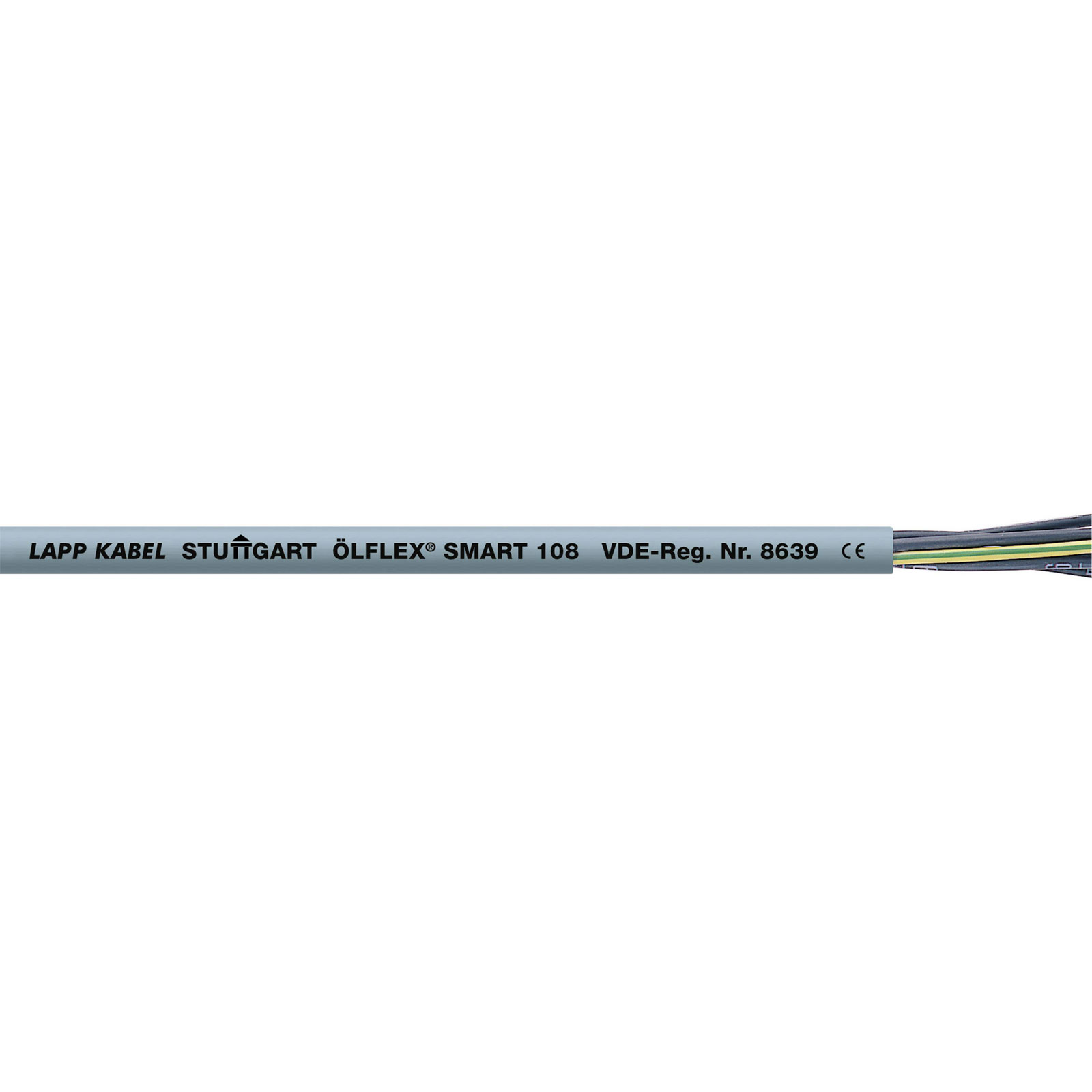

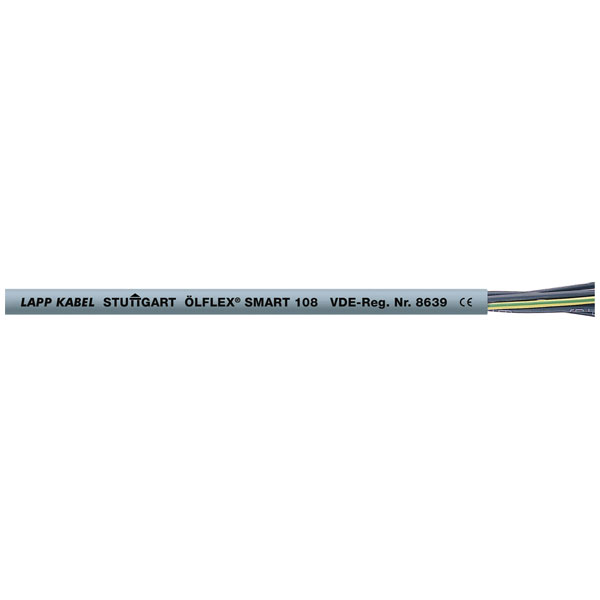

SMART: no more than necessary - the basic version of a flexible control cable by Lapp. The inner sheath layer made of regeneriertem PVC with unchanged high quality of the type TM2 relieves the environment. For fixed laying as well as also for flexible applications with free, not constantly recurring movement without tensile stress. Mainly in dry, moist or wet rooms at normal mechanical load. Application in mechanical engineering, plant construction, painting, heating and air-conditioning technology, power plant technology. Optimised, small outer-Ø and this reduced space requirement. High insulation safety through 4 kV test voltage. During production, free from paint-wetting impairment substances (LBS-free / silicone), making it suitable for painting.
.
| Type |
Control Lead |
| Bend radius (no. of ODs for fixed installation) |
4 |
| Bend radius (no. of ODs for flexible installation) |
15 |
| Cable features |
Flexible |
| Cable type |
ÖLFLEX® SMART 108 |
| Certification marks |
VDE-Reg. No. 8639 |
| Core layout |
Finely stranded according to DIN EN 60228 (VDE 0295), Class 5/IEC 60228 Class 5 |
| Cross section |
2 x 0.50 mm² |
| Cross section (each core) |
0.50mm² |
| Factory colour |
Grey |
| Halogen-free |
No |
| Insulation |
PVC |
| Insulation material |
PVC |
| Manufacturer part # |
17520099/100 |
| Max. temperature range (fixed installation) |
+80°C |
| Max. temperature range (flexible installation) |
+70°C |
| Min. temperature range (fixed installation) |
-40°C |
| Min. temperature range (flexible installation) |
-5°C |
| Misc Attribute |
ÖLFLEX SMART 108 2X0,5 100M RG |
| No. of leads |
2 |
| Nominal voltage |
500V |
| Nominal voltage U0 |
300V |
| Number-coded |
Yes |
| Outside Ø |
4.80mm |
| Packaged |
Yes |
| Sold per metre |
No |
| Suited for cable carriers |
No |
| Test voltage |
4000V |
| Wire ID code |
Black wires with white numbering (VDE 0293) |
