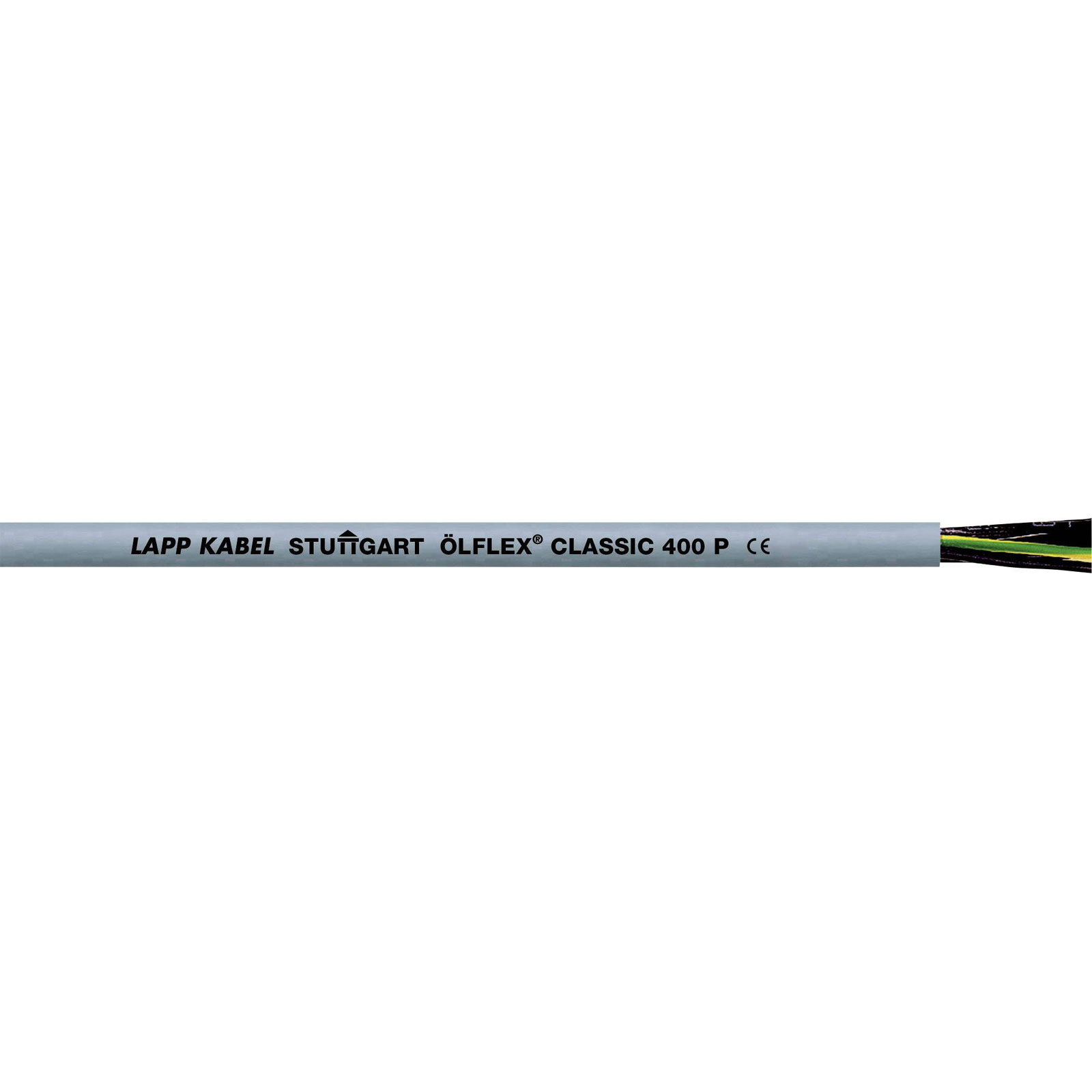

Because of its excellent mechanical, chemical and UV resistance, this cable is used everywhere that cables are subject to a great deal of wear due to harsh operational conditions.
| Type |
Control Lead |
| Bend radius |
For flexible use: 12.5 x external dia.; when laid fixed: 4 x external dia. |
| Bend radius (no. of ODs for fixed installation) |
4 |
| Bend radius (no. of ODs for flexible installation) |
12 |
| Certification marks |
In accordance with: VDE Reg. No. 7030, sheath according to VDE 0250/0282. |
| Core layout |
Finely stranded according to VDE 0295, Class 5 / IEC 228 Class 5 |
| Cross section (each core) |
0.75mm² |
| Factory colour |
Grey |
| Halogen-free |
No |
| Insulation material |
Polyurethane |
| Manufacturer part # |
1312103/1 |
| Max. length sold by the metre |
300m |
| Max. temperature range (fixed installation) |
+85°C |
| Max. temperature range (flexible installation) |
+70°C |
| Min. temperature range (fixed installation) |
-40°C |
| Min. temperature range (flexible installation) |
-5°C |
| Misc Attribute 1 |
ÖLFLEX® CLASSIC 400 P |
| Misc Attribute 2 |
ÖLFLEX CLASSIC 400 P |
| No. of leads |
3 G |
| Nominal voltage |
500V |
| Nominal voltage (details) |
300/500V |
| Nominal voltage U0 |
300V |
| Number-coded |
Yes |
| Outside Ø |
5.70mm |
| Packaged |
No |
| Sold per metre |
Yes |
| Suited for cable carriers |
No |
| Temperature Range |
Moving: -5 - +70 °C, when fixed : -40 - +80°C |
| Wire ID code |
Black wires with white number printing (VDE 0293) |
