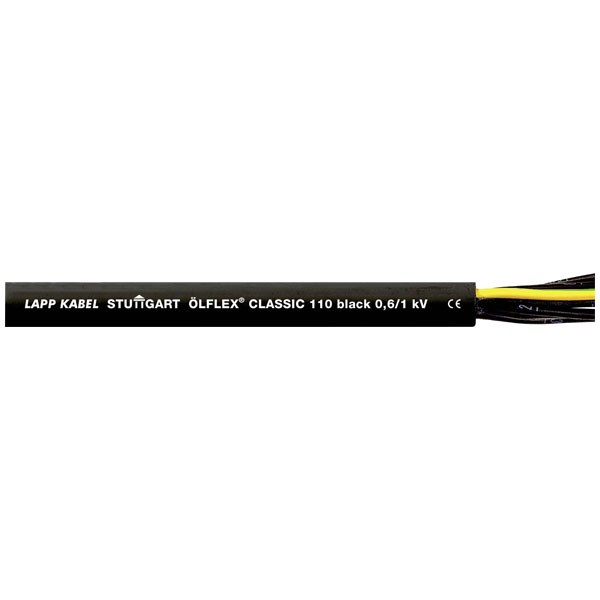

LappKabel 1120274/1 CLASSIC BLACK 110 Control lead 7 G 1 mm² Black

Control and connection line especially under industrial ambient conditions. Mainly in dry, moist or wet rooms at normal mechanical load. Used also in the open under consideration of the temperature range. Direct earth laying possible. For free appliances, not continuously moving and without tensile loads or compulsory guidance, and for fixed installations. Machine engineering, plant engineering, heating and air-conditioning technology, power plant technology, painting systems, UV- and weather-resistant. High insulation safety through 4 kV test voltage. Free from substances interfering with paint wetting (LBS-free / silicon-free), thus also suitable for painting plants

Type	Classic Cable
Bend radius	For flexible use: 15 x external dia.; when laid fixed: 4 x external dia.
Bend radius (no. of ODs for fixed installation)	4
Bend radius (no. of ODs for flexible installation)	15
Certification marks	In accordance with: Conductors according to VDE 0281 (H07V-K) sheath according to Italian standard CEI-UNEL 35755 + 35756.
Core layout	Finely stranded according to VDE 0295, Class 5/IEC 60228 Class 5
Cross section (each core)	1mm²
Factory colour	Black
Halogen-free	No
Manufacturer part #	1120274/1
Max. length sold by the metre	300m
Max. temperature range (fixed installation)	+80°C
Max. temperature range (flexible installation)	+70°C
Min. temperature range (fixed installation)	-30°C
Min. temperature range (flexible installation)	-5°C
Misc Attribute	ÖLFLEX® CLASSIC 110
No. of leads	7 G
Nominal voltage	1000V
Nominal voltage (details)	U0/U: 600/1000V
Nominal voltage U0	600V
Number-coded	Yes
Outside Ø	11.10mm
Packaged	No
Sold per metre	Yes
Suited for cable carriers	No
Temperature Range	Moving: -5 - +70 °C, when fixed : -30 - +80°C
Test voltage	4000V
Wire ID code	Black wires with white numbering (VDE 0293)
