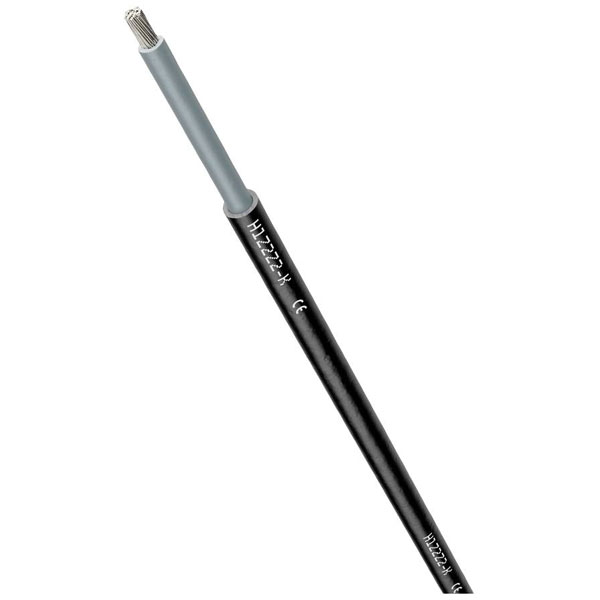

The photovoltaic cable type B1Z2Z2-K according to the design standard EN 50618 is basically weather, abrasion, notch and UV resistant. The halogen-free, double insulated and networked solar cables are suitable for constant outdoor use for connection of grounded and non-earthed solar-powered systems, if necessary also freely suspended. They are used for cabling solar modules with one another as well as for connecting the individual module series and the inverter. A common standard of application is HD 60364-7-712/VDE 0100-712 "Building low-voltage systems – Part 7-712: Requirements for industrial facilities, rooms and systems of a special kind – Photovoltaic (PV) power supply systems..."
.
| Type |
Cable |
| Bend radius (no. of ODs for fixed installation) |
4 |
| Cable type |
H1Z2Z2-K |
| Cross section |
1 x 10 mm² |
| Cross section (each core) |
10mm² |
| Factory colour |
Black |
| Halogen-free |
Yes |
| Insulation material |
Polyolefin |
| Manufacturer part # |
1023761/500 |
| Max. temperature range (fixed installation) |
+90°C |
| Max. temperature range (flexible installation) |
+90°C |
| Min. temperature range (fixed installation) |
-40°C |
| Min. temperature range (flexible installation) |
-25°C |
| Misc Attribute |
1023761/500 |
| No. of leads |
1 |
| Outside Ø |
7.10mm |
| Sold per metre |
Yes |
