LappKabel 0046014 HEAT 180 SIHF Data Cable 3 x 1.5mm² Red

LappKabel
Extended range
Order Code:

63-6649

Brand: LappKabel MPN: 0046014
Qty Unit Price (Ex VAT)
1+ £3.51
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 6 weeks

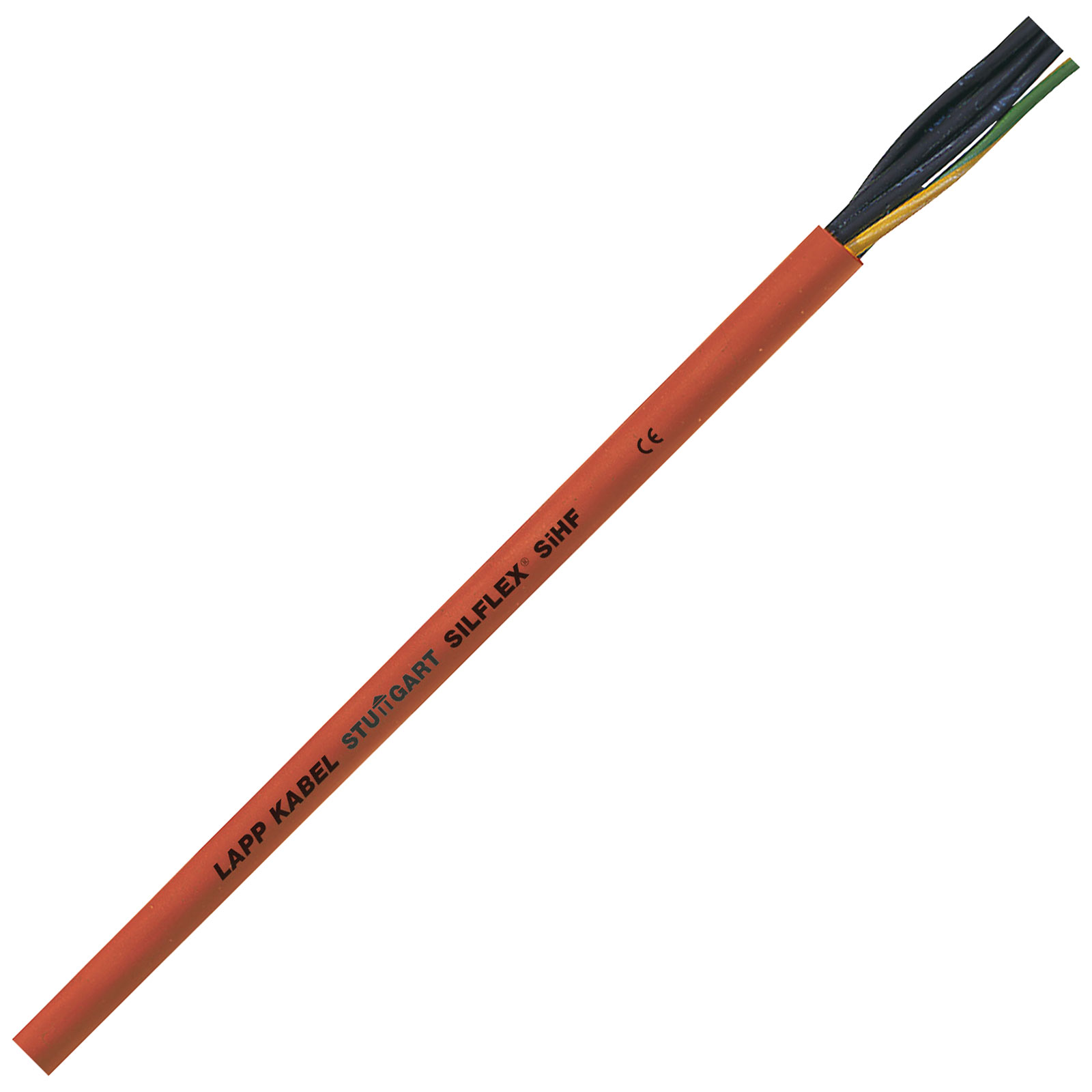

This multifunctional cable from LappKabel has a red-brown silicone-based outer sheath and is highly flexible, so can be used in installations where space is limited.


  • Suitable for thermal class H applications
  • Bend radius (no. of ODs for fixed installation): 4
  • Bend radius (no. of ODs for flexible installation): 15
  • Cable features: Halogen-free, Flame-retardant, Oil-resistant, Heat-resistant
  • Cable Type: ÖLFLEX® HEAT 180 SIHF High-temperature cable
  • Colour: Red, Brown
  • Core layout: Flexible to VDE 0295
  • Class 5/IEC 60228 Class 5
  • Cross section 3 x 1.5mm²
  • Halogen free
  • Insulation material: Silicone
  • Max. temperature range (fixed installation): +180°C
  • Min. temperature range (fixed installation): -50°C
  • No. of leads 3
  • Nominal voltage: 500V
  • Nominal voltage U0: 300V
  • Outside diameter: 8.5mm
  • Sold per metre: Yes
  • Standards: VDE 0250
  • Manufacturer's part 0046014

This cable will be supplied in one continuous length, subject to the maximum reel size. For example, an order for 7 metres of cable will result in a single 7-metre cable being supplied, not 7 one-metre lengths.
Conductor Stranding Flexible to VDE 0295
Insulation material Silicone
Cable Diameter 8.5mm
Colour Brown, red
Conductor Cross-section 3 x 1.5mm²
Length Sold per metre
Sold by Metre Yes
Standards/Test Marks VDE 0250
