Lütze Electricity Monitoring 633755

Lütze Brand: Lütze
The group consists of Lütze converters with true RMS-input, designed for current measurement applications in electrical systems.
Description Image Product Buy Qty Pricing (Ex VAT) Input resistance Input signal Misc Attribute Connection Current consumption Depth Dim Frequency Height IP rating Load Max. ambient temperature Min. ambient temperature Output signal Supply Voltage Width

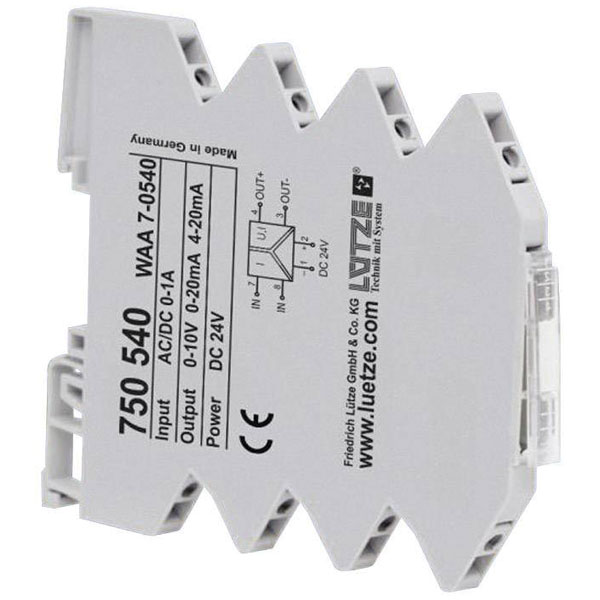

Lütze 750540 3-way Converter RMS-Input for 1A/5A LED Configurable
Lütze 750540 3-way Converter RMS-Input for 1A/5A LED Configurable
Standard range
Order code: 12-4339
MPN: 750540

4 in stock, despatched in 4 working days
1+ £125.37
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		0.1Ω 1A WAA 7-0540 Screws 0.14 - 1.5 mm² 13mA 115.5mm (W x H x D) 6.2 x 90 x 115.5 mm 400Hz 90mm IP20 <400 Ω · 1 kΩ +60°C -25°C 0 - 10 V/0 - 20 mA, 4 - 20 MAmA 24V DC 6.2mm
Lütze 750541 WAA Converter True RMS-Input 1A/5A 3-Way DIP-Switch
Lütze 750541 WAA Converter True RMS-Input 1A/5A 3-Way DIP-Switch
Extended range
Order code: 12-4340
MPN: 750541

Available to back orderPlease contact us for lead time
1+ £121.71
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		0.01Ω 5A WAA 7-0541 Screws 0.14 - 1.5 mm² 13mA 115.5mm (W x H x D) 6.2 x 90 x 115.5 mm 400Hz 90mm IP20 <400 Ω · 1 kΩ +60°C -25°C 0 - 10 V/0 - 20 mA, 4 - 20 MAmA 24V DC 6.2mm
