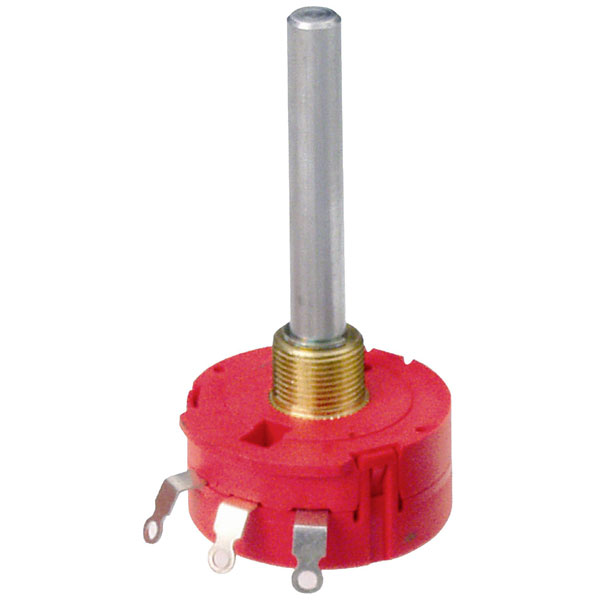

KYOCERA/AVX 3114306792 Wire-wound potentiometer Mono 2W 2.5kΩ Rotary Control

KYOCERA/AVX 3114306792 is a precision-engineered wire-wound potentiometer designed for demanding electronic applications requiring reliable variable resistance control. Rated at 2 watts with a resistance value of 2.5 kilohms, this rotary control component offers precise resistance adjustments, making it ideal for use in circuits where variable voltage control is crucial. The device is particularly well-suited for applications such as audio equipment, instrumentation control, and other electronic devices needing fine-tuned voltage regulation. As a slide potentiometer, it ensures stable operation and long-lasting performance, meeting the high standards expected in professional and industrial settings.

Type	3114306792
Resistance	2.5kΩ
Power Rating	2W
Actuating Force	2.5Ncm
Axle Diameter	6mm
Axle length	50mm
Case Dimensions	28.5mm
Connection	Solder tag
Content	1
Cut-off Voltage	300V
Diameter	28.5mm
Dimensions	(Ø x L) 28.5 mm x 15 mm
Electrical Angle	270°
Impact Tolerance	100Ncm
Length	15mm
Maximum Temperature	+90°C
Mechanical Angle	300°
Minimum Temperature	-40°C
Output	Mono
Product Type	Wire-wound pot
Resistance characteristic	linear
Thread Length	10mm
Thread Size	M10
Tolerance ±	0.1%
