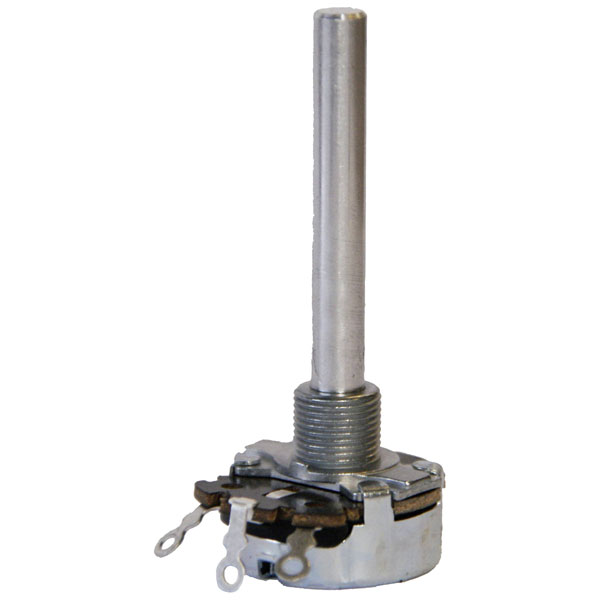

KYOCERA/AVX 3104604806 Rotary Potentiometer 4W 250Ω Wire-wound Mono 1pc

KYOCERA/AVX 3104604806 is a rotary potentiometer designed with a power rating of 4 watts and a resistance of 250 ohms. This precision-engineered component is constructed using a wire-wound mono configuration, providing stable and reliable performance in applications requiring fine adjustment of electrical resistance. The device is particularly suited for professional audio equipment, instrumentation controls, and various industrial applications where precise resistance calibration is essential. As a single-piece unit, this rotary potentiometer offers consistent and durable performance, making it a valued component for engineers requiring dependable adjustment solutions. Its robust design supports a wide range of operational environments while maintaining accuracy and repeatability.

Type	3104604806
Resistance	250Ω
Power Rating	4W
Actuating Force	3.6Ncm
Axle Diameter	6mm
Axle length	14.5mm
Case Dimensions	24mm
Connection	Solder tag
Content	1
Cut-off Voltage	500V
Diameter	24mm
Dimensions	(Ø x L) 24 mm x 12 mm
Electrical Angle	280°
Impact Tolerance	115Ncm
Length	12mm
Maximum Temperature	+90°C
Mechanical Angle	300°
Minimum Temperature	-40°C
Output	Mono
Product Type	Wire-wound pot
Resistance characteristic	linear
Thread Length	8mm
Thread Size	M10
Tolerance ±	0.1%
