Kingbright L-794PWC 8mm U/b White LED 1500mcd

Kingbright
Order Code:

55-1888

Brand: Kingbright MPN: L-794PWC

Discontinued

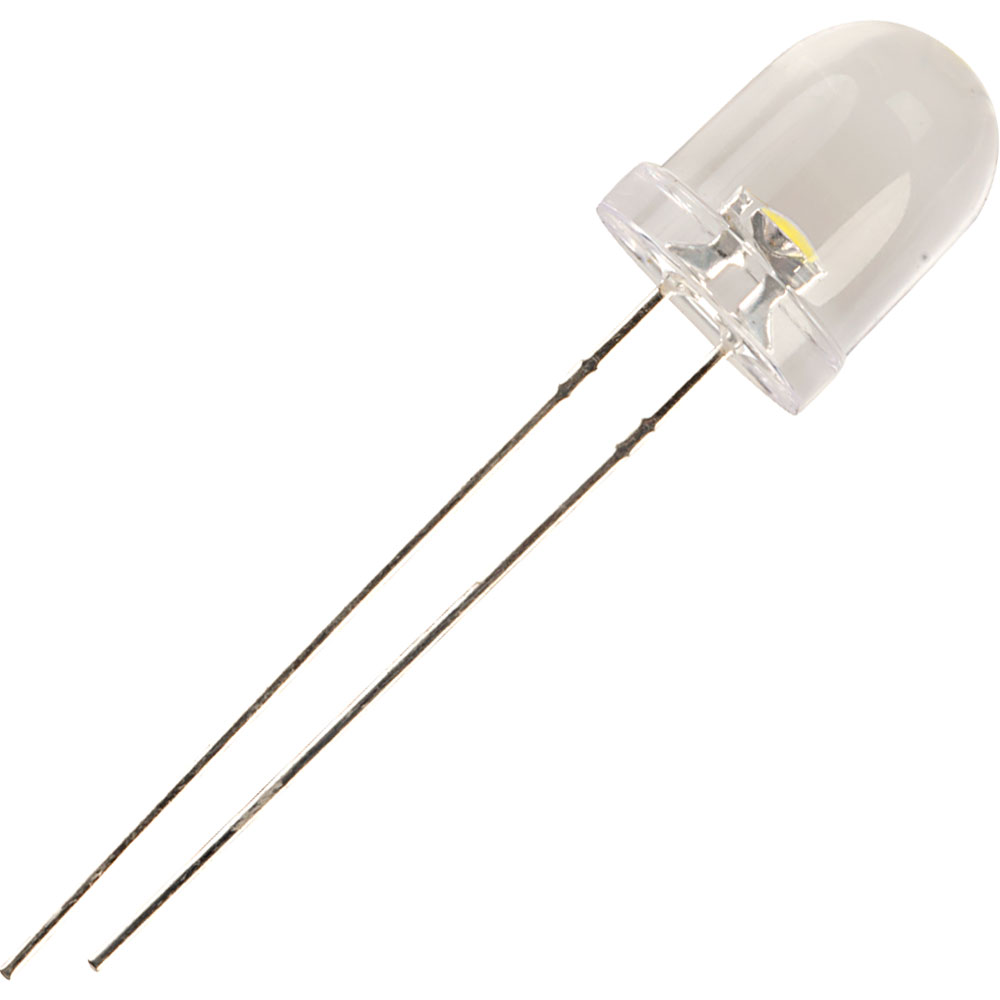

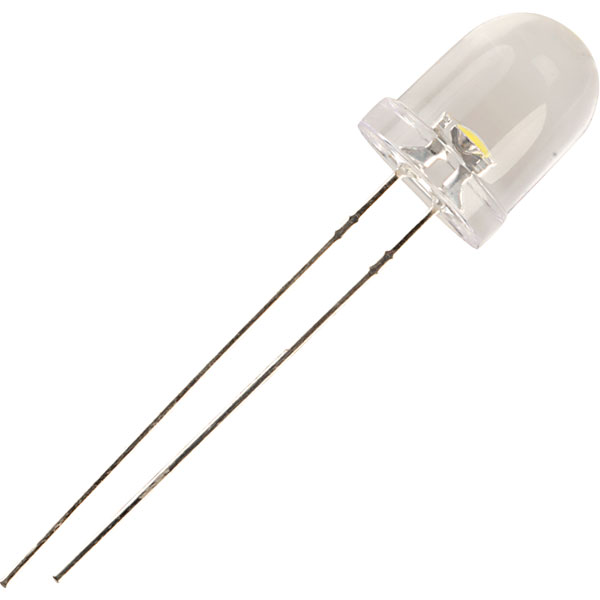

This ultra bright white LED from Kingbright offers a luminous intensity in excess of 300mcd housed in an 8mm diffused package.


  • GaAlAs dice
  • IC compatible
  • Reliable and rugged
  • Long life, solid state reliability
  • 1500mcd luminous intensity
  • Particularly suited to warning devices, alarms, indication, etc.
  • Kingbright L-793/794 series

Rapid Electronics are Kingbright''s leading UK distributor of LEDs. To find out more about the full range of Kingbright products please visit Rapid''s Kingbright page.


LED Colour White
Dominant Wavelength 0.31/0.31Chromaticity Coords
Forward Current 30mA
Lens Type Water clear
Luminous Intensity 1500mcd
Reverse Voltage 5V
Viewing Angle 20°
Forward Voltage Typical 3.2V
Max Operating Temp +85°C
Minimum Operating Temp -40°C
Size 8mm

Questions

*Question functionality currently disabled
Monday, May 20, 2013 | Question by: Rapid Customer | Product code: 55-1888
Q. We are needing to replace the blown LEDs in our 3V Ray boxes. Would these be suitable?
A. Hi Greg. Thank you for your question. They are possibly not that suitable as they need 3.2 to light them up, they may just work but would not be an exact match in the original lamp fitting.
Thursday, April 25, 2013 | Question by: Rapid Customer | Product code: 55-1888
Q. Could i put this LED in a series circuit using 2x AA batteries (3V) or would i need a resistor too?
A. Hi Matt. Thank you for your question. These LEDs have a forward voltage of 3.2V LED so the 3V 2 x AA batteries wired in series will provide would not need a resistor on a single LED. However, you would need an extra 3.2V for each LED you wire in series. You could however add these in parallel without changing the battery pack or adding any resistor, obviously the more LEDs you use the shorter the battery life.
