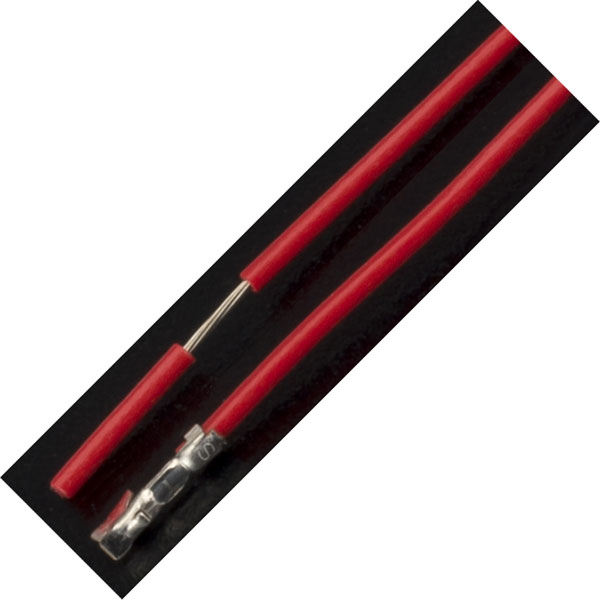

JST SH3-SS5-28300 300mm Length Cable with Single Crimp Contact

This is a 300mm pre-made cable with a crimp socket on one end for insertion into JST SH range of disconnectable crimp style 1.0mm pitch SMT connectors. The socket has a retention lance to ensure that insertion is simple and secure. Ideal for wire to board connections where space is at a premium. We also supply matching headers and a range of other JST connectors.

• 1.0A AC, DC current rating 0.32mm (28 AWG)
• 50V AC, DC voltage rating
• -25 to +85°C operating temperature
• 20mΩ max. contact resistance
• Accepts wire with conductor sizes 0.202 to 0.32mm (32 to 28AWG)
• Wire insulation outside diameter (OD) 0.4 to 0.8mm
