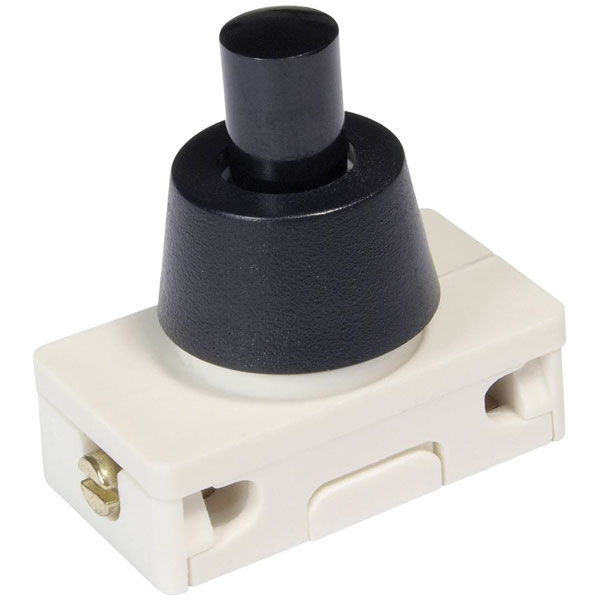

interBär 8001 Pushbutton Switch 250V 6A On/Off Latch 27x16x29.7mm White

Image Representative of Range

interBär 8001 Pushbutton Switch 250V 6A On/Off Latch 27x16x29.7mm White

interBär
Standard range
Order Code:

09-5008

Brand: interBär MPN: n/a EAN-13: 4011644004923
Qty Unit Price (Ex VAT)
1+ £2.94
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
56 in stock, despatched in 4 working days

The InterBär pushbutton switch is designed for 250 V AC and supports up to 6 A with an on/off latch function. Measuring 27 x 16 x 29.7 mm, it is compact and suitable for application in household appliances and consumer electronics. This switch is ideal for environments where reliable actuation and compact design are necessary.
Type Pushbutton switch
Board thickness (max.) 10mm
Casing/button colour White
Connection Screws
Contact type 1 breaker
Dim (L x W x H) 27 x 16 x 29.7 mm
Functions latch
Height 29.7mm
Length 27mm
Lighting type None
Max. temperature +85°C
Recess diameter 11mm
RoHS-compliant Yes
Switch position 1 x On/Off
Switch/button features Protruding
Switching current (inductive) 2A
Switching current (max.) 6A
Switching voltage 250V AC
Width 16mm
