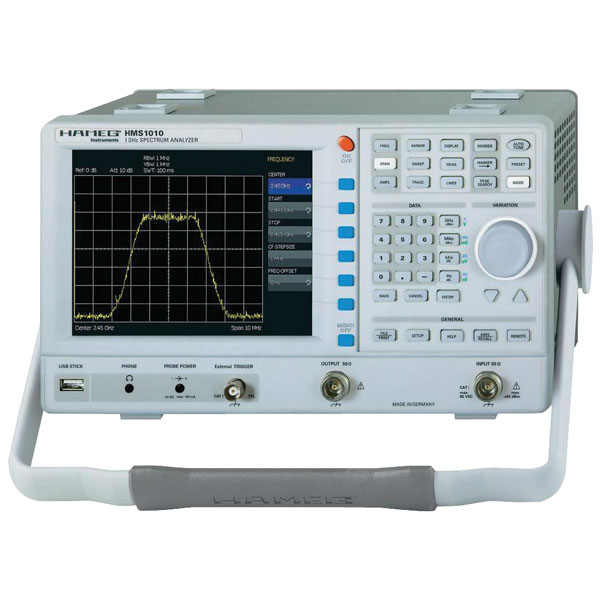

The HAMEG HMS1010 1GHz spectrum analyzer offers a frequency range of 100KHz
to 1GHz. In addition, the instrument also offers a tracking generator. The
amplitude measuring range extends from -114dBm to +20dBm; the optional
preamplifier further extends this range to -135dBm (100Hz). The display has 10
divisions in both the amplitude and frequency axes. The spectral purity exceeds
100dBc/Hz for a carrier offset of 100KHz. Special attention was given to
comprehensive and practical filter bandwidths.
The HMS300 covers the range from 100Hz to 1MHz in 1 to 3 steps; for EMI
measurements the CISPR bandwidths 200Hz, 9KHz, 120KHz and 1MHz are provided as
well. The user may choose between auto, minimum, maximum, max-peak, sample, rms
or quasi-peak detectors.
The built-in FM- and AM demodulators allow you to
identify interference easily either via the headset output or the incorporated
loudspeaker which helps to analyze the root cause fast.
Apart from the classical laboratory measurements the applications range from
transmitter, cable, and antenna tests to the judgment of the signal quality in
the areas of public and private radio. The 8 markers provided including the
delta marker as well as the various peak search functions shorten the analysis
and processing times. HAMEG Instruments are well known for oscilloscopes and
test equipment for more than 50 years.
- Frequency range 100kHz to 1GHz
- Tracking generator HMS1010 -20 to 0dBm
- Amplitude measurement range -114 to +20dBm DANL -135dBm with preamp.
Option HO3011
- Sweep time 20ms to 1000s
- Resolution bandwidth 100Hz to 1MHz in 1 to 3 steps, 200kHz (-3dB);
additional 200Hz, 9kHz, 120kHz, 1MHz
- Spectral purity <-100dBc/Hz (@100kHz)
- Video Bandwidth 10Hz to 1MHz in 1–3 Steps
- Integrated AM and FM demodulators (Phone and int. Speaker)
- Detectors: auto, min, max-peak, sample, RMS, quasi-peak
- 8 Markers with delta marker, miscellaneous peak functions
- Crisp 16.5cm TFT VGA display, DVI output
- 3x USB for mass-storage, printer and remote control optional IEEE-488
(GPIB) or Ethernet/USB interface
| Type |
Spectrum analyser |
| Frequency Range |
100Hz |
| Display |
TFT LCD |
