GSG-122 (110MHZ, Stereo) Signal Source

The GW Instek GSG-122 is a FM/AM standard signal generator providing CW, AM, and FM signals from 100kHz to 110MHz with the calibrated output levels from -19dB to 99dB in 1dB step. The intuitive user interface of the GW Instek GSG-122 enables free combinations of frequency, output level, and modulation.

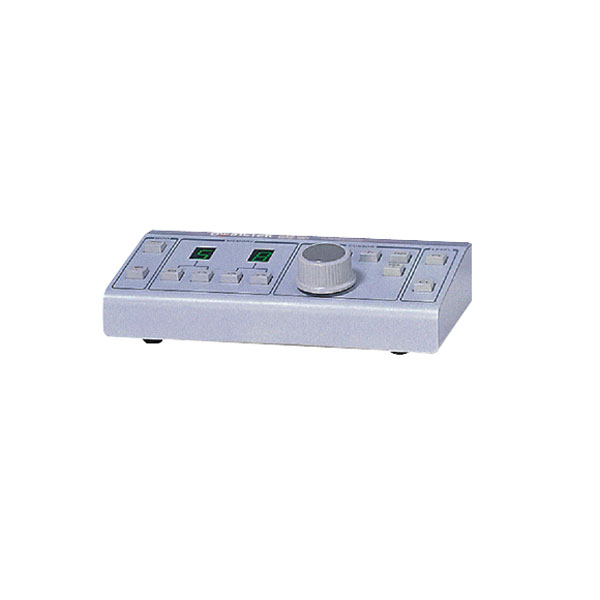

Output settings can be stored and recalled easily; 10 points in one block up to 100 continuous points, with 4 independent output levels. Remote controlling is available with the optional GRC-1201 unit (order code 90-6101) which enhances the memory recall function from a distance. All these superior features of GW Instek GSG-122 cover most of the applications in receiver manufacturing and maintenance industries.

• Freq Range 100kHz to 110MHz
• Output Level -19 to +99dBu
• All operations are controlled by microprocessor
• Memory storage: 10 points in one block (up to 100 continuous points) and 4 output levels
• Memory data copy
• Back space key
• Remote control function (Need the GRC-1201 option (order code 90-6101))
• FM Stereo Modulation
• Manufacturers part no. GW Instek GSG-122
