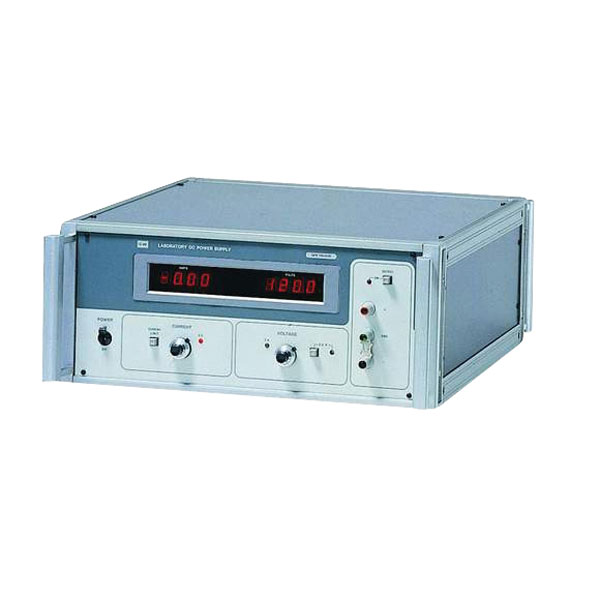

GPR-100H05D Multiple Output Linear DC Power Supply

The GW Instek GPR-100H05D has been designed for use in the laboratory, schools and production lines. The working characteristic of this power supply is called a constant voltage/ constant current automatic crossover type. This permits continuous transition from constant current to constant voltage modes in response to load change.

The GW Instek GPR-100H05D is a single output, 500 to 900W, linear DC power supply. Overload and reverse polarity protection, in addition to the standard OVP/OCP/OTP, protects the GW Instek GPR-100H05D and its load from unexpected conditions. The unit can be used as either constant voltage or current source. The GW Instek GPR-100H05D high regulation and low ripple/noise are maintained at 0.01% and <2mVrms, respectively for CV mode.

The GW Instek GPR-100H05D is ideal for system applications requiring large output capacity or custom-made output settings, such as material testing and product copper plating.

• 0.01% High regulation
• Constant voltage and constant current operation
• Low ripple and noise
• Overload and reverse polarity protection
• 3½ Digits 0.5 inch LED display
• Application for material and products ageing
• Built-in overvoltage and over current tripped crowbar
• Ten-turn potentiometer
• Manufacturers part no. GW Instek GPR-100H05D
