FiC FRS1B-S-DC12 pieceB Relay 12V DC 1A 1 Change-Over RT III Monostable

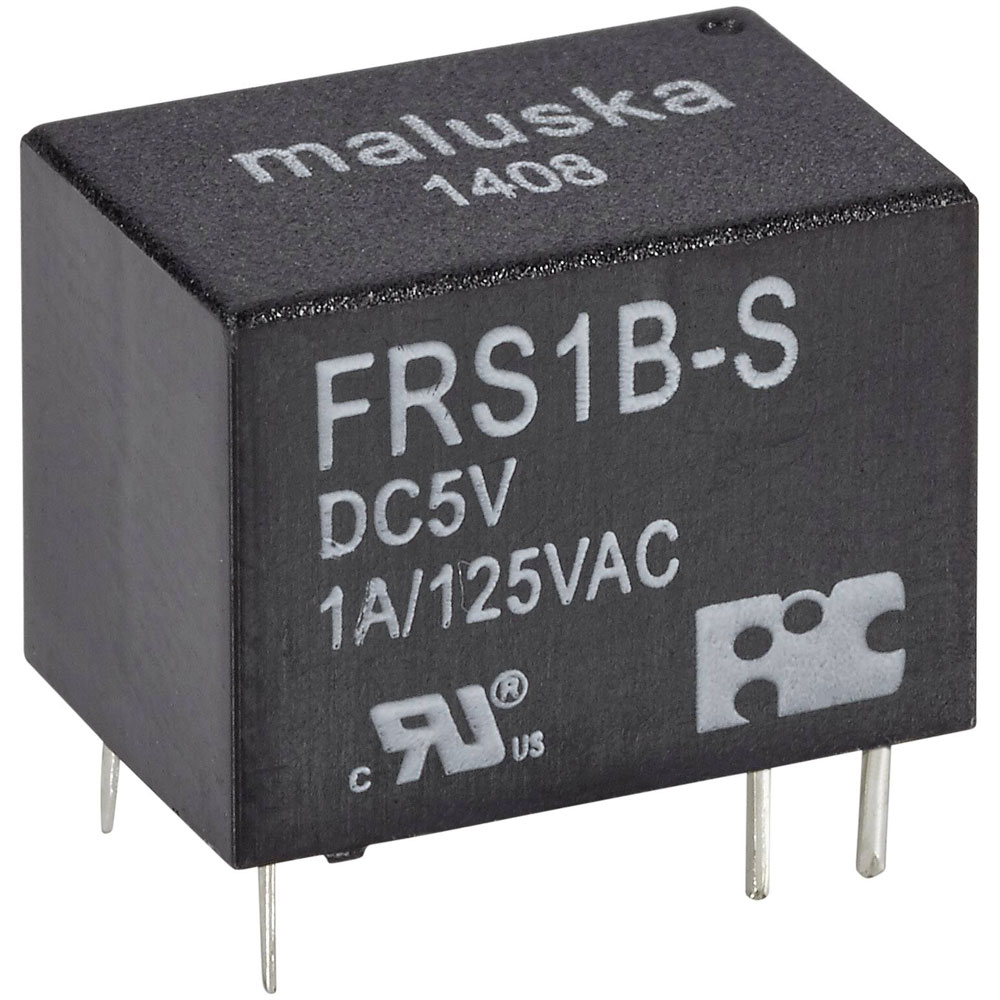

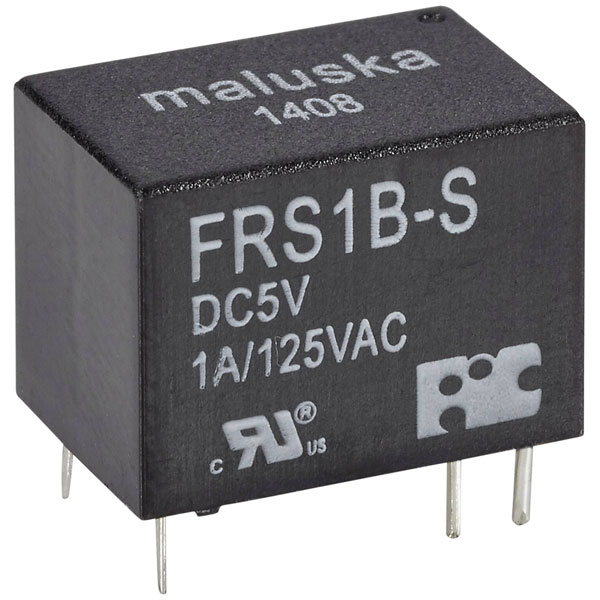

Image Representative of Range

FiC FRS1B-S-DC12 pieceB Relay 12V DC 1A 1 Change-Over RT III Monostable

FiC
Standard range
Order Code:

09-1477

Brand: FiC MPN: FRS1B-S-DC12 EAN-13: 4016138505191
Qty Unit Price (Ex VAT)
1+ £0.830
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
737 in stock, despatched in 4 working days

The FiC FRS1B-S-DC12 is a small PCB relay with a 12 V DC coil voltage and 1 A switching capacity. Its compact size of 16x11x11.5mm makes it suitable for miniature and space-constrained applications. Typical uses include switching circuits in consumer electronics, automotive, and industrial control systems.
Type PCB relay
Coil nominal voltage 12V DC
Connection Solder pins
Contact material AgNi+Au
Contact type 1 change-over
Control mode monostable, 1 coil
Dim (L x W x H) 16 x 11 x 11.5 mm
Fall time 5ms
Height 11.5mm
Length 16mm
Max. temperature +75°C
Min. temperature -25°C
Misc Attribute FRS1B-S-DC12
Nominal voltage (details) 12V DC
Resistance (coil) 320Ω
Response time 5ms
RoHS-compliant Yes
Switching capacity 50 W/110VA
Switching Current
1A
Switching current (max.) 1A
Switching voltage 30 V/DC/125V AC
Width 11mm
