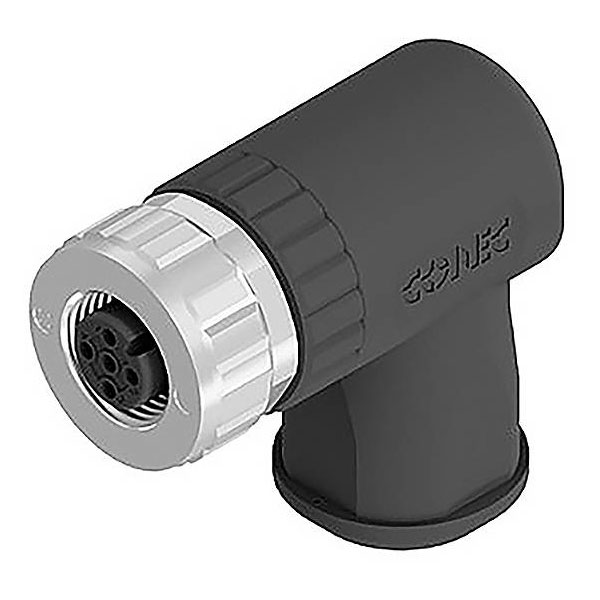

Conec 43-00098 Sensor/actuator connector 5 pins RJ 1 pc(s)

Conec 43-00098 is a sensor/actuator connector featuring five pins, designed to facilitate reliable data and power transmission in complex systems. This product, also referred to as 3374472 - Conec 43-00098, is engineered to provide robust performance in industrial automation, machine assembly, and robotics applications. The connectors compact RJ-style configuration supports efficient electrical connections in confined spaces, ensuring seamless integration into existing electronic frameworks. Engineered for durability and consistent performance, it provides an optimal solution for demanding environments requiring high-quality signal and data transfer capabilities.

Type	Plug connector pre-fabricated
Connection	Screws
Connection side A	M12 socket, right angle
Connector cross-section (max.)	1.5mm²
Contact surface	Gold on nickel
Content	1
IP Rating	IP67
Mating cycles	100
No. of pins	5
Nominal Current	7.5A
Nominal Voltage	60V
Product Type	Sensor/actuator connector
Seal type	Screw-on
