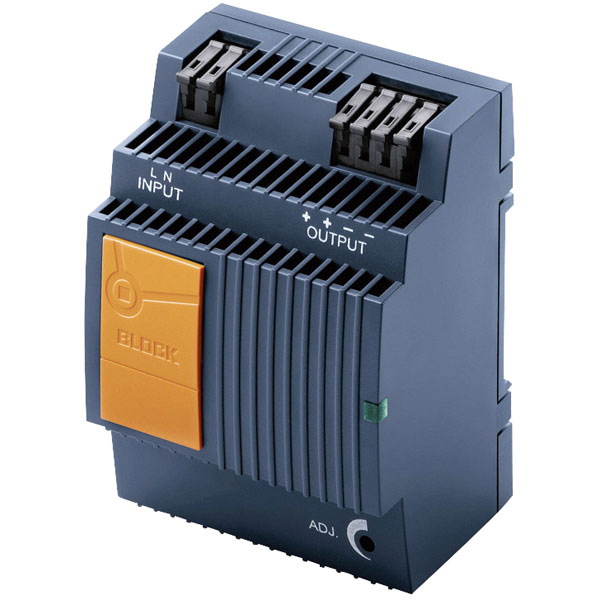

Block PEL 230/24-25 DIN Rail Power Supply 24VDC 2.5A 60W 1-Phase

The Block PEL 230/24-2.5 is a Primary Switch Mode DIN Rail Power Supply, that concentrates on the core task of voltage and current supply. This Single-Phase PSU has a flat step profile optimised for installation in control panels in the building automation.

• Stabilised and adjustable output voltage
• DC OK signalling via LEDs
• Parallel connection option
• Service-friendly spring-loaded connector system
• Panel installation on mounting rails
• Input rated voltage: 100 to 240V AC
• Input voltage range: 85 to 264V AC (120 - 373V DC)
• Input rated current: 14/ 0.6A (110/ 230V AC)
• Rated frequency range: 44 to 66Hz
• Starting current limiter: <30A, NTC
• Input fuse internal: 2A (slow-blow)
• Recommended back-up fuse: 6A, 10A, 16A, characteristics B, C
• Mains buffering: 10/ 80ms
• Transient surge voltage protection: Varistor
• Output voltage range: 22.8 to 26.4V DC
• Output rated current: 2.5A
• Resistance to reverse feed: 30V DC
• Overload behaviour: Constant current
• Ripple factor typical: 100mVss
• Parallel connection: Yes
• Serial operation: Yes
• Efficiency typ. 80 %
• Standards
• Classification: Primary switched mode power supply
• Supplied: Single Phase
• Supplied with 24V Output Voltage
• Manufacturer's part: Block PEL 230/24-2.5
