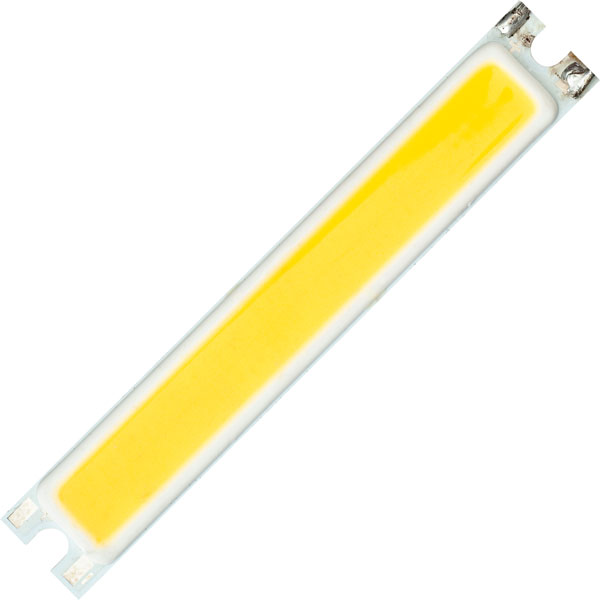

Barthelme 61300332 LED Circuit Board In Small-Chip-On-Board Design White 300 Im

LED circuit board in SCOB design (Small-Chip-On-Board) The advantage of this technology is uniform dissipation of heat via copper carrier on the heat sink - thus results in a simplified thermal management. A redundancy arises by using several small LED chips. Another advantage is the uniform and wide angle of radiation and high lm / W efficiency.

• Colour: White
• Colour rendering index: 73
• Colour temperature type: 3000 K
• Dimensions, height: 2mm
• Dimensions, length: 50mm
• Dimensions, width: 8mm
• Forward current I(F): 300 mA
• Forward voltage U(F): 13.6 V
• Light bulb component type (category): HighPower LED PCB
• Luminous flux (phi): 300 lm
• Power: 4 W
• Radiation angle: 130 °
• Type: 61300332

Depending on the application for which it is used, this product may require an additional heat sink.
