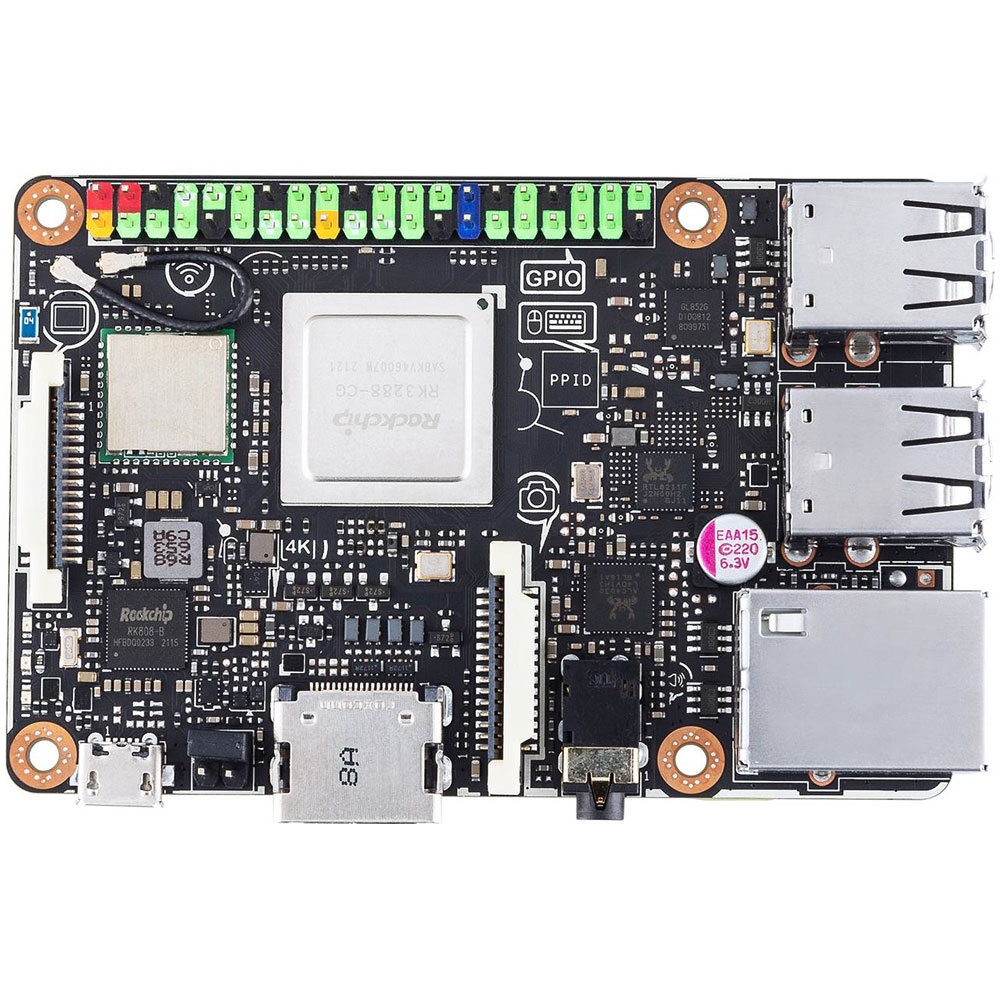

Asus manufactures the Tinker Board S R2.0, a single-board computer robustly designed for performance and reliability. Ideal for applications where Raspberry Pi or Arduino solutions are employed, it offers enhanced graphics and connectivity for makers and developers. Its compact design enables versatile use in projects such as home automation, multimedia centres, or educational tools.
| Type |
SBC |
| Audio port type |
3.5mm |
| Bluetooth |
4.2 |
| Bluetooth Version |
4.2+EDR |
| Compatible memory cards |
MicroSD (TransFlash) |
| Design Height |
85.5mm |
| eMMC capacity |
16 GB |
| Ethernet interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| GPIO interface |
Yes |
| HDMI ports quantity |
1 |
| Height |
85.5mm |
| I2C interface |
Yes |
| I2S interface |
Yes |
| Integrated LAN |
Yes |
| Internal memory type |
DDR3-SDRAM |
| Internal ports |
GPIO (24-pin) |
| Maximum internal memory |
2 GB |
| Memory channels |
Dual-channel |
| Memory techology |
DDR3 |
| MPI CSI interface |
Yes |
| MPI DSI interface |
Yes |
| MultiVolt I/Os |
3.3,5 V |
| Number of 10 Gb LAN ports |
1 |
| Number of HDMI ports |
1 |
| Operating temperature (T-T) |
0 - 60 °C |
| PCM interface |
Yes |
| Processor cores |
4 |
| Processor cores (No.) |
4 |
| Processor manufacturer |
Rockchip |
| Processor model |
Rockchip RK3288 |
| RAM |
2GB |
| RAM / Max. upgrade |
2GB |
| RAM Type |
DDR3 RAM |
| S/PDIF out port |
Yes |
| Screen size diagonal (inches) |
1.0in |
| SoC |
Rockchip RK3288 |
| SPI interface |
Yes |
| Storage temperature (T-T) |
-40 - 85 °C |
| Supported Memory cards |
microSD |
| UART |
Yes |
| USB ports quantity |
4 |
| USB version |
2.0 |
| Width |
54mm |
| Wi-Fi |
Yes |
| Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n) |
