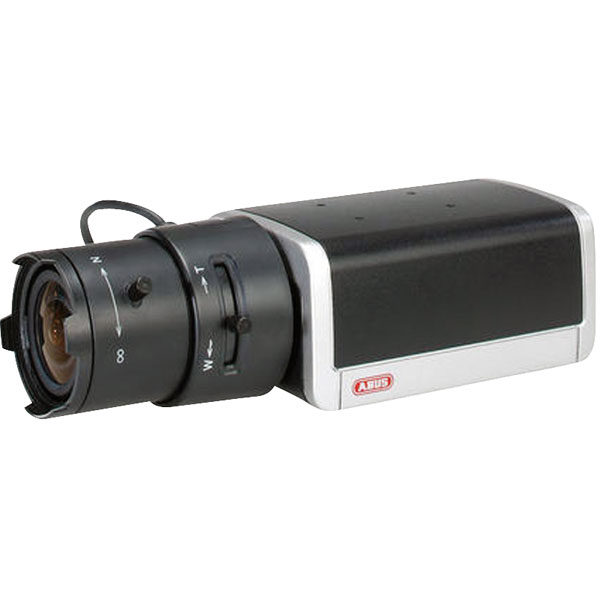

ABUS TVCC20520 520 TVL Standard Camera

The ABUS Surveillance Camera CCD Colour 520 TVL TVCC20520 Resolution comes with various features at a very competitive price.

This quality camera can be used with a plethora of lenses and is equipped with a 1/3" Sony Super HAD CCD. With 520 TV lines, it delivers very detailed color images in high resolution with minimal image noise, while the image sensor's high light sensitivity ensures excellent picture quality.

Compatible with C-Mount and CS-Mount lenses: with or without Auto-Iris function, while a connector for a DC Auto-Iris plug is available, the camera also features AWB (Automatic White Balance), ELC (Electric Light Compensation), BLC (Back Light Compensation) and AGC (Automatic Gain Control) for optimizing image quality with backlight and other adverse lighting situations. Depending on the aperture, light-sensitivity is around 0.01 lux, allowing the camera to deliver good images when the human eye cannot see anything anymore.

The TVCC20520 can be used for video surveillance at the mid-range level operating on 230VAC (for 12VDC see the structurally identical TVCC20020) and convinces with its low power consumption. Handy for installation: simple setup and configuration via easily accessible DIP switches.

1/3" Sony Super HAD CCD

Resolution of 520 TV lines

Image optimization thanks to DSP technology

Simple parameter setting via DIP switches and potentiometer

Standard camera with very compact housing design

Integrated 230 V AC power supply unit

55.5 x 40.5 x 99mm (W x H x D)

Connections: BNC, DC (5.5 x 2.1mm, 2-Pin)

Image sensor: 1/3" Sony Super HAD CCD

Pixels (effective): 752(H) x 582(V) pixel

Pixels (total): 795(H) x 596(V) pixel

Aperture at minimum illumination (color): 1.0, 30

DSP: Nextchip

Electronic shutter: AES/AI

Backlight compensation: BLC

Camera outputs: 1 x V s-s, 75 Ohm

Camera type: Standard camera

Max. operating temperature: 50°C

Max. humidity: 85%

Min. operating temperature: -10°C

Net weight: 0.29kg

Lens mount: CS/C

Lens control: DC

Signal-to-noise ratio: 48

AC voltage supply: 110-230V

Control: DC

Power consumption: 125 mA

TVL: 520 TVL

Amplifier control: AGC, Off

Video system: PAL

White balance: AWB

Certifications: CE, UVV

Lens not included in delivery.
Standard camera · C-Mount Lens adapter ring · Sockel for camera holder includes screws · Distance element for weather proof casing · User manual.

Additional IR light	No
Camera type	Box camera
Current Consumption	1.5W
Dimensions	(W x H x D) 55,5 x 40,5 x 99 mm
Image sensor	8.5 mm Sony Super HAD CCD
Light sensitivity	0.01lx
Microphone	No
Operating Temperature Range	-10°C
Operating Voltage	230V AC
Outputs (Ohm)	1x Vss (75 Ohm)
Place of operation	Indoor
Protection Type	IP34
Resolution	520 TVL
Specification	Colour
