The ABUS AZ4300 Terxon SX Full Kit with Sounder is the ultimate burglary alarm system made by ABUS Security-Centre, containing all necessary components for effective, fully-fledged protection.
Changing the detectors and extending the system is possible at any time, as needed, while the kit with sounder provides you with all advantages of the Terxon SX. The system has 8 freely programmable zones for 8 wired detectors, with zone 9 the tamper zone. Only NC detectors can be connected, while the type of wiring is left up to you.
The compact sounder (siren and flashing light) is included in this full kit and has its own reserved tamper zone on the motherboard. In addition to the alarm centre, the heart of your system, the LCD control unit is also part of the full kit. The system can be programmed via the control unit and may be activated or deactivated via code or chip key. The connection is made via 4-wire bus wiring.

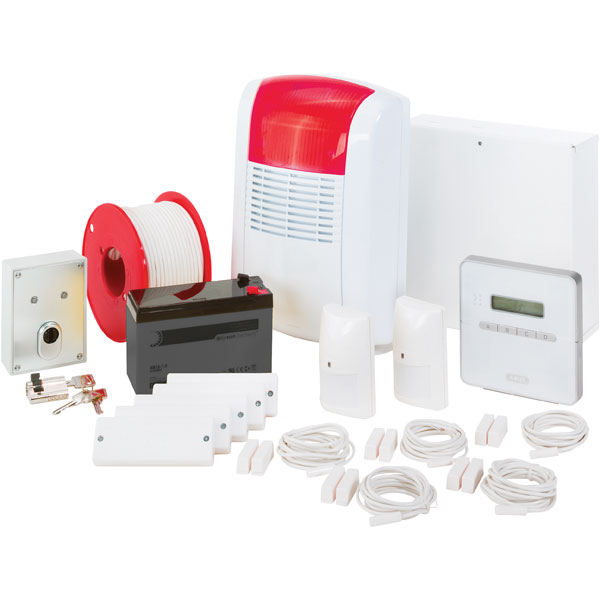

The kit includes a central unit, siren, 2x motion sensors, 5x opening detectors, 5x soldering distributors, 16-pin, half cylinder, key switches, installation cable and an emergency power rechargeable battery.
These additional accessories guarantee quick and easy installation: 50m installation cable, 5 VdS weld distributors and 7Ah VdS emergency battery.
Optimal basic equipment for effective protectionUnbeatable value for moneyVdS motion detectors includedCompact sounder included Surface mount key-switch - SE1000:
117 x 85 x 42mm (WxHxD)ABS housing material0.02 power consumptionSurface fittingTamper monitoringIP55 protection class: 55 DC voltage supply: 10-15 V Xevox Profi VdS motion detector - BW8010:
60 x 106 x 47mm (W x H x D)Alarm memoryNC, 50mA, 24V DCHeat detectionAdjustable sensitivity15 x 15m detection range of detectorABS housing material
Terxon SX Alarm Control Panel - AZ4000:
240 x 240 x 85mm (W x H x D)230V screw terminal, 13.8V screw terminal, loudspeaker, zone-screw terminal, 11x switching outputs4 control panels16 users8 wired zones1 tamper zoneTwo-line LCD alphanumerical display12V DC, 7.0Ah lead rechargeable battery250 event log
Profiline Sounder, Red - SG1800 (SG1800):
220 x 300 x 91mm (W x H x D)Standard connections AUX/COM: 13.8V DC/200mA, additional connections PS+/PS-: 13.8V DC/1.6A1Hz flashing frequencyAdjustable alarm toneABS housing material0.648 power consumptionLuminous red
Opening Detector, 2m, 2-core, White - FU7350W:11 x 12 x 48mm (W x H x D)NC, max. contact capacity 100V/5W/0.05AMagnetic field measurementNo stray-field protectionABS housing material2-core cable type 2m cable length
