Telegärtner 100007491 STX V6 RJ45 Plug Straight 8P8C 1pc

Image Representative of Range

Telegärtner 100007491 STX V6 RJ45 Plug Straight 8P8C 1pc

Telegartner
Standard range
Order Code:

07-5642

Brand: Telegartner MPN: 100007491
Qty Unit Price (Ex VAT)
1+ £14.94
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
17 in stock, despatched in 4 working days

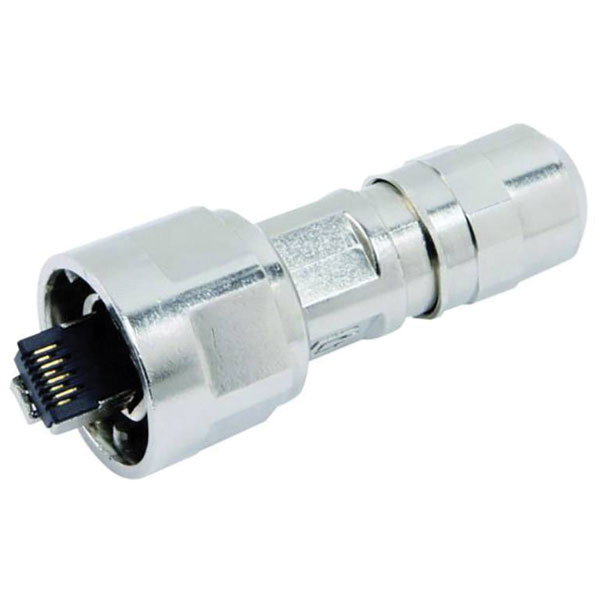

The Telegärtner 100007491 STX V6 RJ45 plug is a network connector designed with a straight configuration and 8P8C pin arrangement. It is suitable for Cat 5, Cat 6, and Cat 7 applications, making it ideal for high-speed Ethernet networks. Typically employed in telecommunications and data transmission systems, this RJ45 plug ensures reliable connectivity.
AWG 22-26
AWG (min.) 26
AWG max. 22
Connection Cut & Clip
Connector standard RJ45
Connector type Plug, straight
IP rating IP20
Material (details) Nickel plated die cast zinc.
Mating cycles min. 750
Misc Attribute 1 Straight
Misc Attribute 2 100007491
Nominal current (details) 1.0 A at 50°C
Pins 8P8C
RoHS-compliant Yes
Specification CAT 6
Standards IEC 60603-7-5
Temperature range -40°C to + 70°C
Type RJ45 connector
