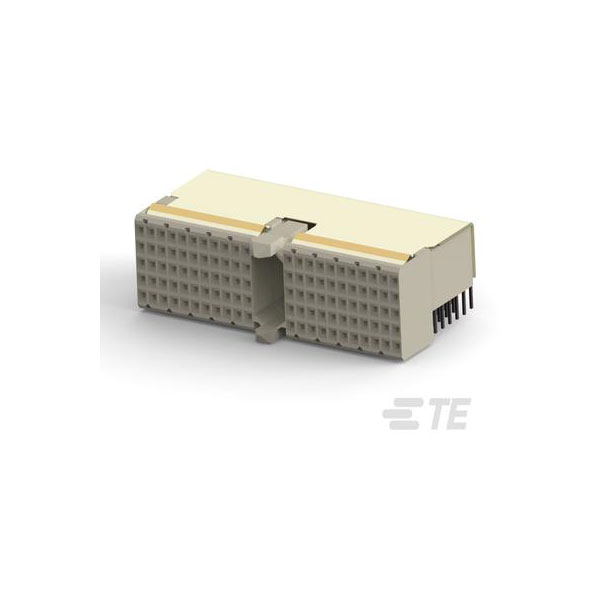

TE Connectivity 5352068-1 Z-PACK Connector Female 110 Contacts 2mm Unshrouded

TE Connectivity
Order Code:

14-2900

Brand: TE Connectivity MPN: 5352068-1
Qty Unit Price (Ex VAT)
22+ £13.10
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 22
Available to back orderBack order, lead time 14 days

The TE Connectivity 5352068-1 is a Z-PACK connector with 110 female contacts.

It features a 2mm pitch and an unshrouded design for high-density applications.

This connector is typically used in telecommunications and data networking equipment.

It is suitable for use in high-speed communication systems.


Type Hard Metric Backplane Connectors
Number of Positions 110
Centerline (Pitch) 3.683mm
Circuit Application Power & Signal
Connector & Contact Terminates To Printed Circuit Board
Connector Mounting Type Board Mount
Connector System Board-to-Board
Contact Base Material Phosphor Bronze
Contact Current Rating (Max) 1.5
Contact Mating Area Plating Material Gold (Au)
Contact Mating Area Plating Material Thickness 50
Contact Type Socket
Contact Underplating Material Nickel
Housing Material Polyester GF
Mating Alignment Type Multi-Purpose Center
Number of Columns 22
Number of Rows 5
Number of Signal Positions 110
Operating Temperature Range -67 – 257
Packaging Method Tube
Packaging Quantity 11
PCB Connector Type PCB Mount Receptacle
PCB Contact Termination Area Plating Material Tin
PCB Mount Orientation Right Angle
Primary Product colour Grey
Sealable No
Shielded Yes
Termination Method to PCB Through Hole - Press-Fit
UL Flammability Rating UL 94V-0
