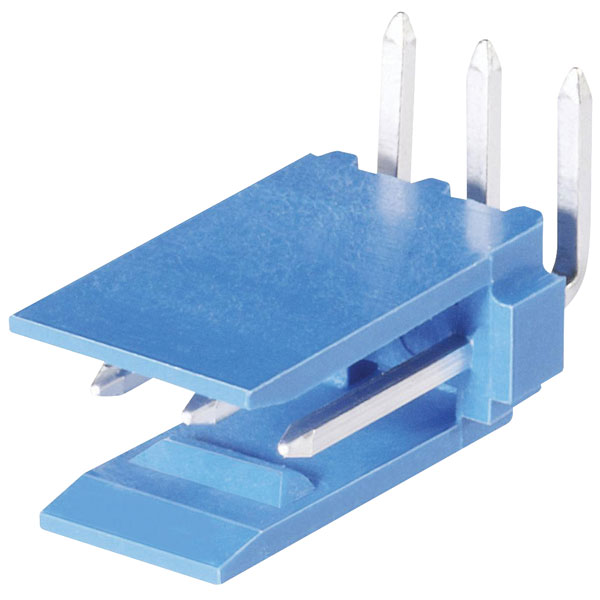

TE 281699-4 HE13 Pin Headers Right Angle Gold 1 x 4P Blue

These shrouded pin headers from the TE Connectivity HD13 range have a pitch of 2.54mm and are vertical mount.

• Product type: Connector
• Connector type: Pin Header
• Applies to: Printed Circuit Board
• Colour: Blue
• Length: 2.9mm
• Number of positions per row: 4
• Number of rows: 1
• Row-to-row spacing: 2.54mm (.1 in )
• Contact plating: Gold
• Contact base material: Phosphor Bronze
• Housing material: High Temperature Thermoplastic
• UL flammability rating: UL94 V-0
• Mounting orientation: Horizontal/90°
• Contact current rating (A): 3
• Termination method to PCB: Through Hole
• Agency/standard: CSA LR7189, UL E28476
• Solder tail contact plating material: Tin over Nickel
• Termination method to wire/cable: Insulation Displacement Crimp (IDC)
• Mating alignment type: Polarization
• Header type: Shrouded
• Contact shape: Square
• Post size: .64mm (.025 in )
• Termination end plating material: Tin-Lead
• Mating post length: 6.75mm
• Housing style: 2-Sided
• Shrouded end dimension (mm): 1.27
• Operating temperature range: -55 to +105°C
• Packaging quantity: 1
• Mftrs part no. 281699-4
