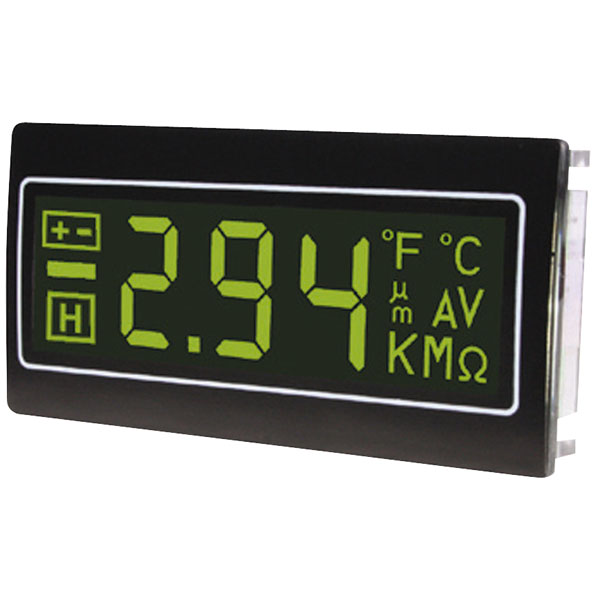

TDE Instruments DPM962-NTG Digital Panel Meter

This module is a low profile LCD digital panel meter conforming to DIN standard panel sizes 36mm x 72mm. It uses advanced components and construction techniques to provide performance combined with elegant appearance at a cost previously unattainable.

The LED backlight provides a clear, easy to read display under all lighting conditions. A large character height enables the LCD display to be easily read. Low power ideal for battery powered applications. Typical applications Indication of DC voltage or current in vehicles, boats.

• Operating voltage 3V to 12V DC
• Total mass of measuring and operating voltage is possible
• Accuracy ±0.1 %
• Display symbols ºF, ºC, µ, m, A, V, K, M, O individually be individually selected
• Backlighting Green inverted
• Assembly dimensions 33 x 68mm
• Current consumption: 2mA
• Dimensions: (W x H x D) 72 x 36 x 14 mm
• Display: LCD
• Display range: 0 - 1999
• Measurement range(s): ± 200mV
• Tolerance: ± 0.1% (+ 1 Digit)
• Type (manufacturer type): DPM962-NTG
