SMD DIP Switches 2.54mm

APEM Brand: APEM
A range of DIP SMD switches from APEM, 2.54mm pitch, with two, six or eight poles.
Description Image Product Buy Pricing (Ex VAT) Type Circuit Current Rating Action
APEM IKL0603000 SMD DIP Switch RM 2.54mm 6 Pole
APEM IKL0603000 SMD DIP Switch RM 2.54mm 6 Pole
Standard range
Order code: 51-0845
MPN: IKD0603000

Available to back orderPlease contact us for lead time
5+ £1.19
Price per unit Ex VAT 		DIL switch On / off 0.1A Contact switching

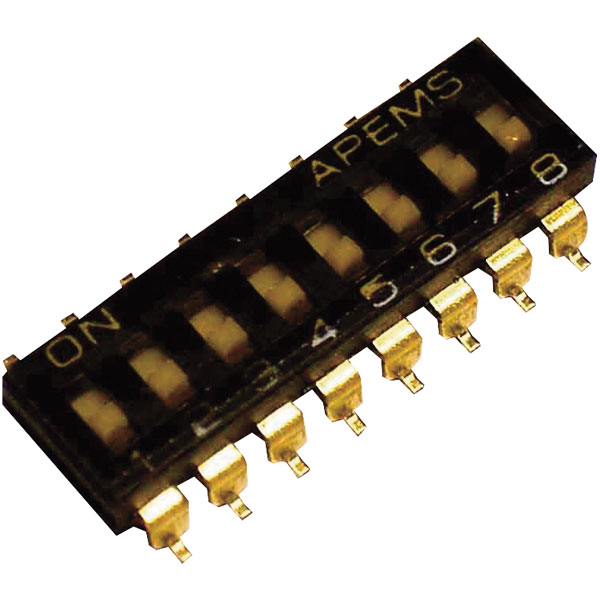

APEM IKL0803000 SMD DIP Switch RM 2.54mm 8 Pole
APEM IKL0803000 SMD DIP Switch RM 2.54mm 8 Pole
Standard range
Order code: 51-0846
MPN: IKD0803000

Available to back orderPlease contact us for lead time
5+ £1.30
Price per unit Ex VAT 		DIL switch On / off 0.1A Contact switching
51-0843
Dielectric strengthMin 500V DC
Dimensions length (A)6.02mm
Electrical life(Max 80mΩ) 2000 Cycles
Grid pitch2.54mm
Insulation resistance(500V DC) Min 1000MΩ
Number of pins2
SpecificationSMD
Switching powerUnswitched 100mA/50VDC, switched 100mA/20VDC
Switching sequenceOn/Off
Temperature range-40 to +100°C
Transfer resistance(Initial value) Max 20mΩ, (after 2000 cycles) 80mΩ
TypeIKL0203000
51-0846
Dielectric strengthMin 500V DC
Dimensions length (A)21.26mm
Electrical life(Max 80mΩ) 2000 Cycles
Grid pitch2.54mm
Insulation resistance(500V DC) Min 1000MΩ
Number of pins8
SpecificationSMD
Switching powerUnswitched 100mA/50VDC, switched 100mA/20VDC
Switching sequenceOn/Off
Temperature range-40 to +100°C
Transfer resistance(Initial value) Max 20mΩ, (after 2000 cycles) 80mΩ
TypeIKL0803000
