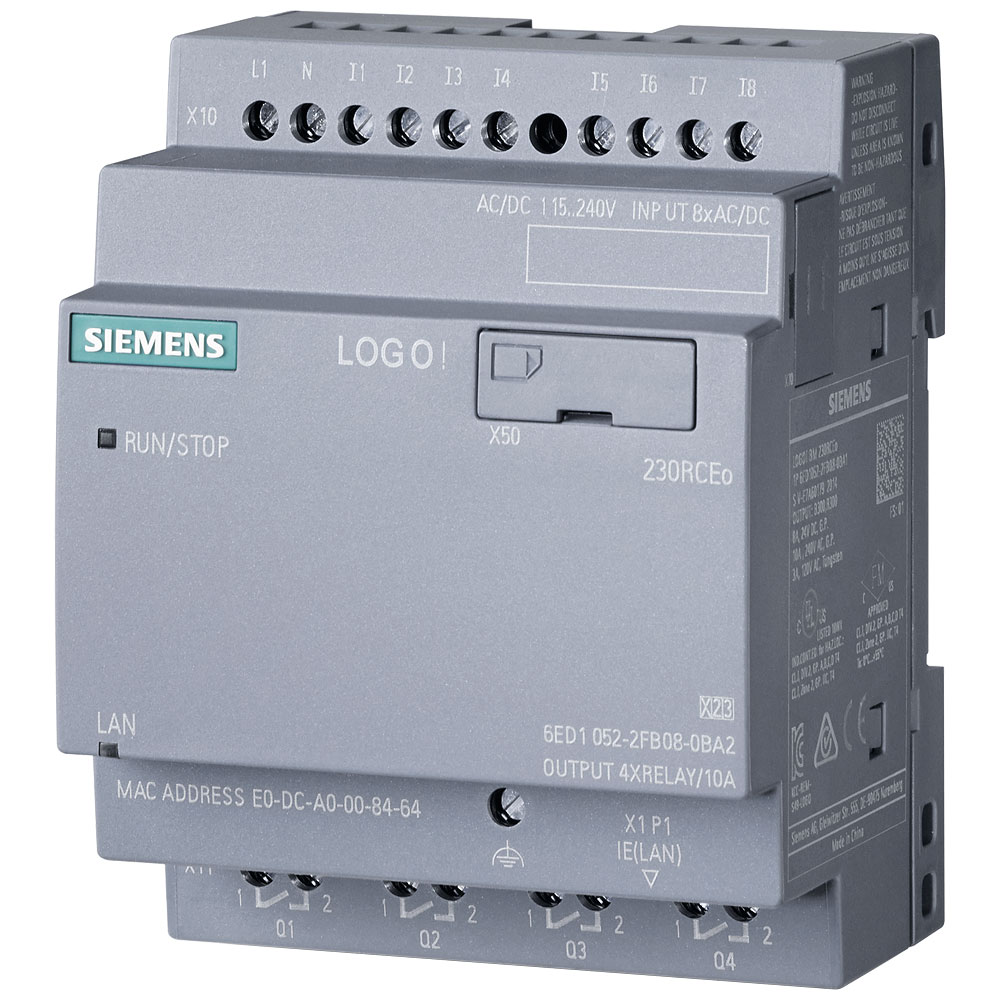

Siemens manufactures the 6ED1052-2FB08-0BA2 PLC controller, which operates on input voltages of 115 V and 230 V AC/DC. This programmable logic controller is used for automation tasks, providing reliable control and monitoring for machinery and equipment. Typical applications include use in industrial automation, building management systems, and energy management solutions.
| Type |
PLC controller |
| Number of Digital Inputs |
8 |
| Appendant operation agent (Ex ia) |
false |
| Appendant operation agent (Ex ib) |
false |
| Basic device |
true |
| Certification |
UL approval. · FM-approved · VDE 0631 · IEC 61131 |
| Certified for UL hazardous location class I |
N/A |
| Certified for UL hazardous location class II |
N/A |
| Certified for UL hazardous location class III |
N/A |
| Certified for UL hazardous location division 1 |
N/A |
| Certified for UL hazardous location division 2 |
N/A |
| Certified for UL hazardous location group A (acetylene) |
N/A |
| Certified for UL hazardous location group B (hydrogen) |
N/A |
| Certified for UL hazardous location group C (ethylene) |
N/A |
| Certified for UL hazardous location group D (propane) |
N/A |
| Certified for UL hazardous location group E (metal dusts) |
N/A |
| Certified for UL hazardous location group F (carbonaceous dusts) |
N/A |
| Certified for UL hazardous location group G (non-conductive dusts) |
N/A |
| Degree of protection (IP) |
IP20 |
| Depth |
58mm |
| Dim |
(L x W) 90 mm x 71.50 mm |
| Display |
No |
| Expandable |
true |
| Expansion device |
false |
| Explosion safety category for dust |
None |
| Explosion safety category for gas |
None |
| Fitting type (details) |
On top hat rail 35 mm, 4 division units wide |
| Front built-in possible |
true |
| Height |
90mm |
| Interference suppression |
Conforms to EN 55 011 (limiting value class B) |
| IO link master |
false |
| Length |
90mm |
| Max. ambient temperature |
+55°C |
| Max. operating voltage |
253V DC |
| Min. ambient temperature |
-20°C |
| Min. operating voltage |
100V DC |
| Misc Attribute |
6ED1052-2FB08-0BA2 |
| Mobile communication standard 2G (GSM) |
false |
| Mobile communication standard 3G (UMTS) |
false |
| Mobile communication standard GPRS |
false |
| Number of Analogue Inputs |
0 |
| Number of Analogue Outputs |
0 |
| Number of Digital Outputs |
4 |
| Number of HW-interfaces industrial Ethernet |
1 |
| Number of HW-interfaces other |
0 |
| Number of HW-interfaces parallel |
0 |
| Number of HW-interfaces RS-232 |
0 |
| Number of HW-interfaces RS-422 |
0 |
| Number of HW-interfaces RS-485 |
0 |
| Number of HW-interfaces serial TTY |
0 |
| Number of HW-interfaces USB |
0 |
| Number of HW-interfaces wireless |
0 |
| Number of inputs (max.) |
8 |
| Number of interfaces PROFINET |
0 |
| Number of Outputs |
4 |
| Number of outputs (max.) |
4 |
| Operating Voltage |
100 - 253 V DC |
| Performance level according to EN ISO 13849-1 |
N/A |
| Power backup type |
480h |
| Power Consumption |
N/A |
| Rack-assembly possible |
false |
| Radio standard Bluetooth |
false |
| Radio standard WLAN 802.11 |
false |
| Redundancy |
false |
| Short-circuit-proofing |
No |
| SIL according to IEC 61508 |
N/A |
| Suitable for rail mounting |
true |
| Suitable for safety functions |
false |
| Supply voltage AC 50 Hz |
85 - 265V |
| Supply voltage AC 60 Hz |
85 - 265V |
| Supply voltage DC |
100 - 253V |
| Supporting protocol for ASI |
false |
| Supporting protocol for AS-Interface Safety at Work |
false |
| Supporting protocol for CAN |
false |
| Supporting protocol for Data-Highway |
false |
| Supporting protocol for DeviceNet |
false |
| Supporting protocol for DeviceNet Safety |
false |
| Supporting protocol for EtherCAT |
false |
| Supporting protocol for EtherNet/IP |
false |
| Supporting protocol for Foundation Fieldbus |
false |
| Supporting protocol for INTERBUS |
false |
| Supporting protocol for INTERBUS-Safety |
false |
| Supporting protocol for KNX |
false |
| Supporting protocol for LON |
true |
| Supporting protocol for Modbus |
false |
| Supporting protocol for other bus systems |
false |
| Supporting protocol for PROFIBUS |
false |
| Supporting protocol for PROFINET CBA |
false |
| Supporting protocol for PROFINET IO |
false |
| Supporting protocol for PROFIsafe |
false |
| Supporting protocol for SafetyBUS p |
false |
| Supporting protocol for SERCOS |
false |
| Supporting protocol for SUCONET |
false |
| Supporting protocol for TCP/IP |
true |
| Switching Current |
10A |
| Voltage type (supply voltage) |
AC/DC |
| Wall mounting/direct mounting |
true |
| Width |
71.5mm |
| With display |
false |
| With optical interface |
false |
| With relay output |
true |
| With time switch clock |
true |
