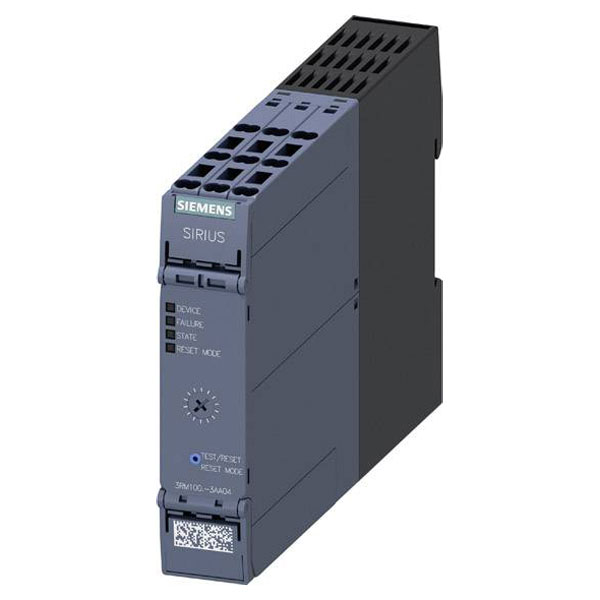

The Siemens 3RM1007-3AA04 motor starter operates at a motor power of 3.00 kW at 400 V with a nominal current of 7 A, using a 24 V DC control voltage. Featuring a soft start capability, it is designed to reduce mechanical stress on motor components, prolonging the life of the motor. Ideal for industrial environments, it is commonly used in automation systems and machinery applications.
| Type |
Motor starter |
| Ambient temperature, upper operating limit |
50°C |
| Coordination class according to IEC 60947-4-3 |
N/A |
| Degree of protection (IP) |
IP20 |
| Degree of protection (NEMA) |
N/A |
| Depth |
141.6mm |
| Dimensions |
(W x H x D) 22.5 x 100 x 141.6 mm |
| External reset possible |
TRUE |
| Height |
100mm |
| Max. temperature |
60°C |
| Min. temperature |
-25°C |
| Misc Attribute 1 |
With electronic overload protection |
| Misc Attribute 2 |
3RM1007-3AA04 |
| Motor power at 400 V |
3.00kW |
| Nominal Current |
7A |
| Nominal current - rounded value |
7A |
| Number of auxiliary contacts as normally closed contact |
1 |
| Number of auxiliary contacts as normally open contact |
1 |
| Number of command positions |
0 |
| Number of indicator lights |
4 |
| Operating Voltage |
48 V-500V |
| Overload release current setting |
7 - 7A |
| Power Consumption |
N/A |
| Rated conditional short-circuit current, type 1, 480 Y/277 V |
N/A |
| Rated conditional short-circuit current, type 1, 600 Y/347 V |
N/A |
| Rated conditional short-circuit current, type 2, 230 V |
N/A |
| Rated conditional short-circuit current, type 2, 400 V |
N/A |
| Rated control supply voltage AC 50 Hz |
N/A |
| Rated control supply voltage AC 60 Hz |
N/A |
| Rated control supply voltage DC |
24 - 24V |
| Rated operation current at AC-3, 400 V |
7A |
| Rated operation current Ie |
7A |
| Rated operation power at AC-3, 230 V, 3-phase |
1.5kW |
| Rated operation power at AC-3, 400 V |
3kW |
| Rated power, 460 V, 60 Hz, 3-phase |
2.20649625kW |
| Rated power, 575 V, 60 Hz, 3-phase |
N/A |
| Release class |
CLASS 10 A |
| Suitable for emergency stop |
FALSE |
| Suitable for rail mounting |
true |
| Supply Voltage |
24V DC |
| Supporting protocol for ASI |
false |
| Supporting protocol for AS-Interface Safety at Work |
false |
| Supporting protocol for CAN |
false |
| Supporting protocol for Data-Highway |
false |
| Supporting protocol for DeviceNet |
false |
| Supporting protocol for DeviceNet Safety |
false |
| Supporting protocol for EtherNet/IP |
false |
| Supporting protocol for Foundation Fieldbus |
false |
| Supporting protocol for INTERBUS |
false |
| Supporting protocol for INTERBUS-Safety |
false |
| Supporting protocol for LON |
false |
| Supporting protocol for Modbus |
false |
| Supporting protocol for other bus systems |
false |
| Supporting protocol for PROFIBUS |
false |
| Supporting protocol for PROFINET CBA |
false |
| Supporting protocol for PROFINET IO |
false |
| Supporting protocol for PROFIsafe |
false |
| Supporting protocol for SafetyBUS p |
false |
| Supporting protocol for SERCOS |
false |
| Supporting protocol for SUCONET |
false |
| Supporting protocol for TCP/IP |
false |
| Temperature compensated overload protection |
false |
| Type of electrical connection for auxiliary- and control current circuit |
Other |
| Type of electrical connection of main circuit |
Screw connection |
| Type of motor starter |
Other |
| Voltage type for actuating |
DC |
| Width |
22.5mm |
| With fuse |
FALSE |
| With short-circuit release |
FALSE |
| With transformer |
FALSE |
