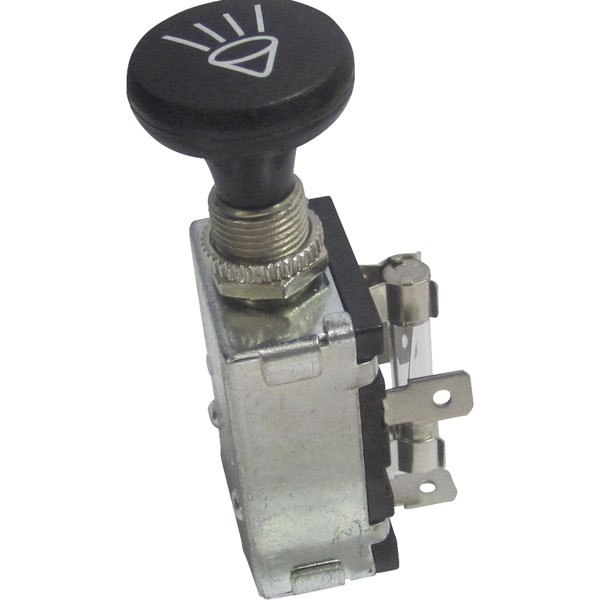

SCI A3-20A-SQ Pull Switch with Fuse Protection 30A 4P Off-On-On

A 3-position pull-switch, with fuse protection, ideal for automotive applications. With 1 'off' position (pushed fully in) and 2 'on' positions (out 1 notch and fully out) the switch is ideal for dipped beam / main beam headlights and 2-speed windscreen wipers.

• Connections: screw terminals
• Front panel thickness: max 6mm
• Function: latching
• Lighting type: none
• Mounting diameter: 12.2mm
• Print motif: headlight symbol
• Specification: Off/on/on
• Switch position: 2x Off/On/On
• Switch type: car pull switch
• Switching current (max.): 30A
• Switching voltage: 12V DC
• SCI type: A3-20A-SQ
