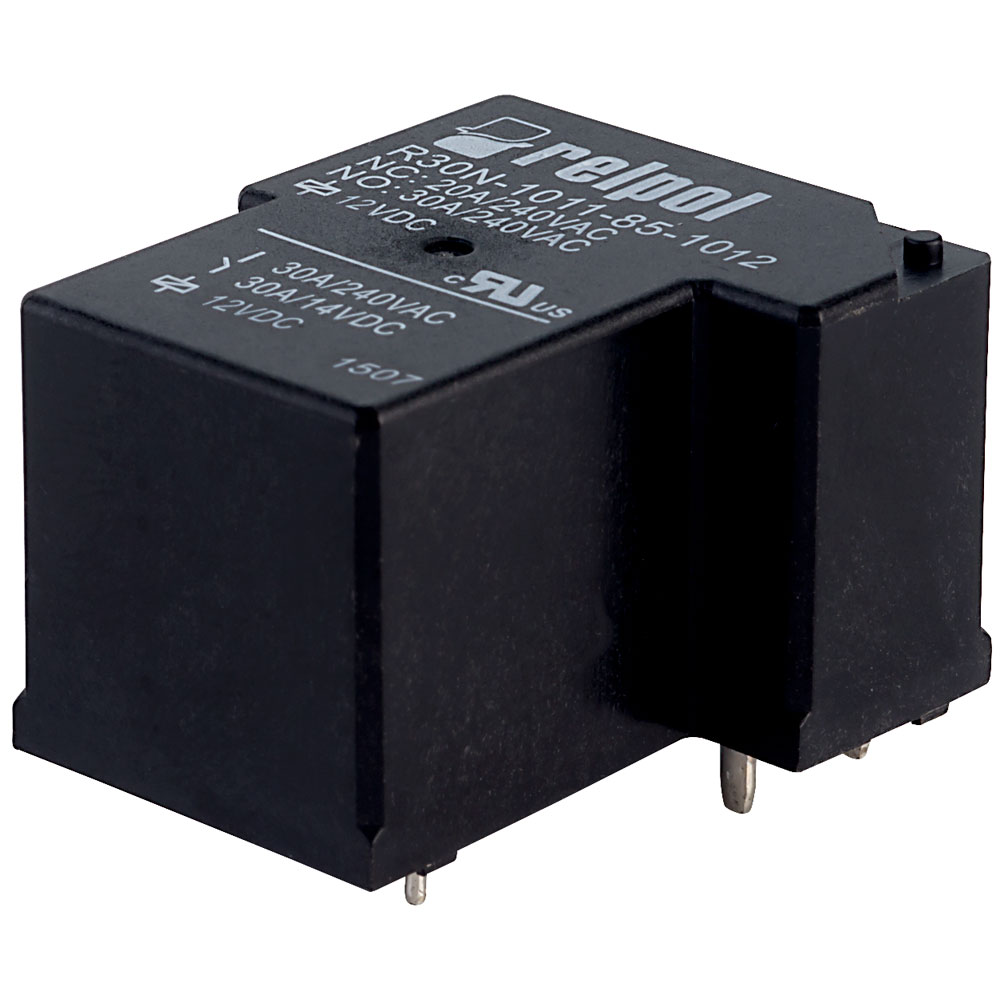

Relpol R30N-1011-85-1012 SPDT Power Relay 12V 30A PCB

Relpol
Order Code:

61-6054

Brand: Relpol MPN: R30N-1011-85-1012

Discontinued


A 30A 12V DC power relay from the R30N series. The relay is a high quality, high load PCB mounting device that features low coil power, small dimensions and light weight. Suitable for applications including automotive, heavy machinery, electronic equipment, HVAC, domestic appliances, etc.


  • Contact configuration SPDT (SPCO)
  • Rated current 30A
  • High shock and vibration resistance
  • Long life
  • Sealed for wave soldering and cleaning
Coil Voltage 12V
Contact Configuration SPDT
Switching Current 30A
Coil Resistance 160Ω
Length 32.5mm
Width 27.6mm
Height 20.5mm
Mounting Type PCB
Operating Temperature -55 to +100°C
Switching Voltage Max (AC) 300V
Switching Voltage Max (DC) 110V
