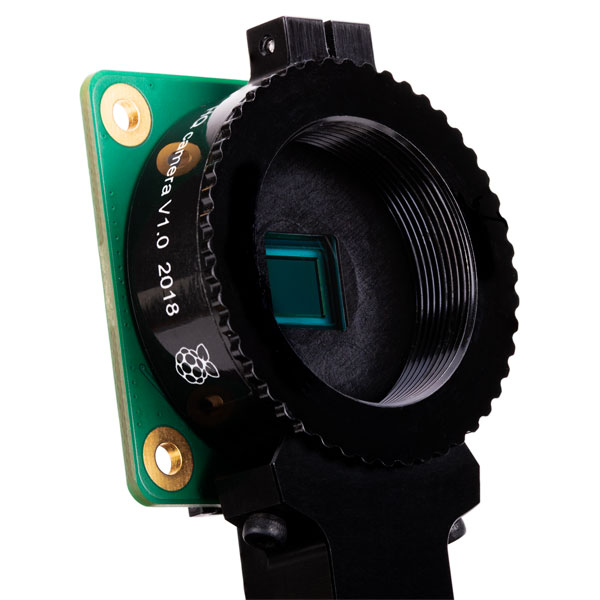

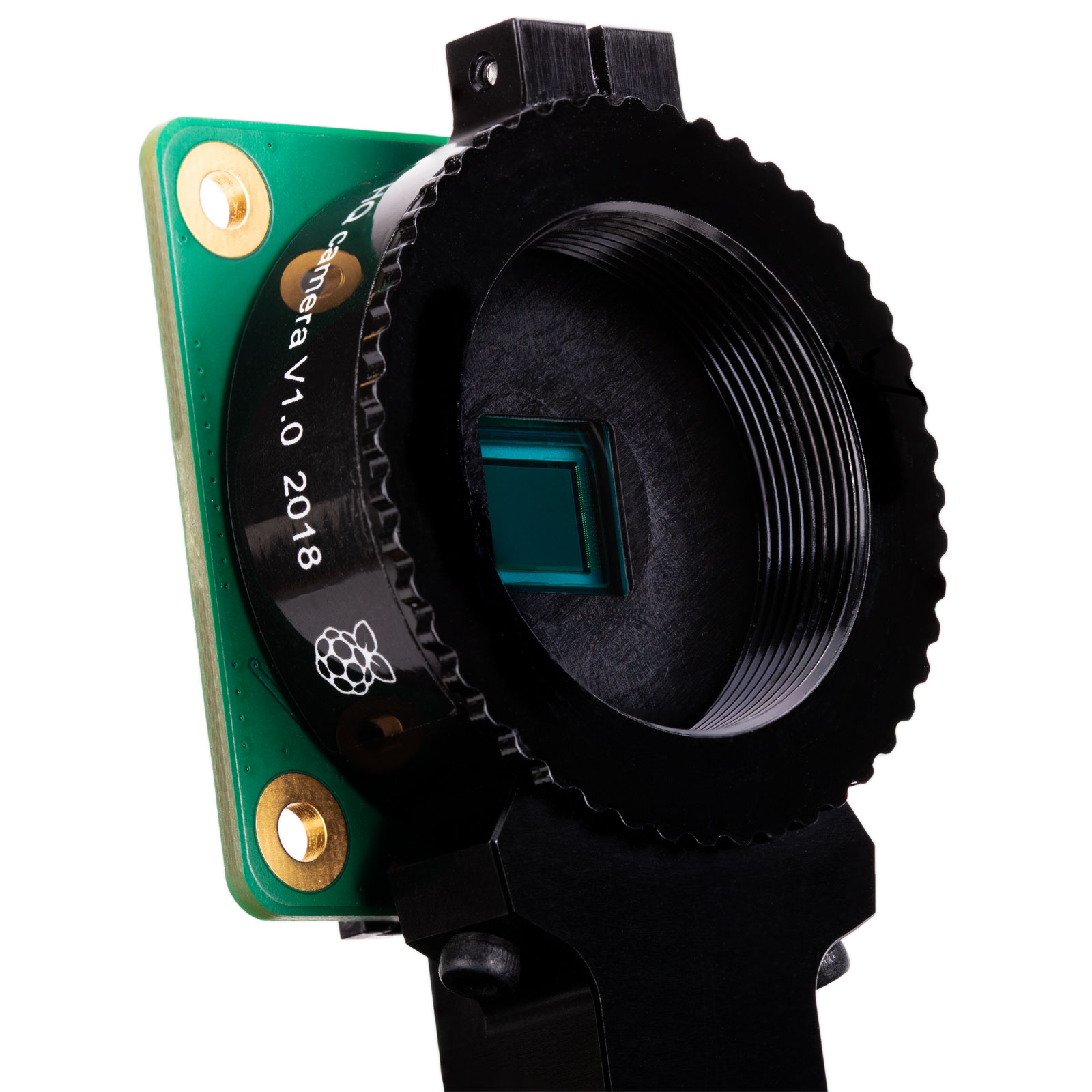

Raspberry Pi SC1220 High Quality Camera 12.3MP and Sony IMX477 Sensor

The Raspberry Pi SC1220 HQ Camera is built around a 12.3-megapixel Sony IMX477R sensor, featuring a 7.9 mm diagonal, back-illuminated architecture that delivers exceptional low-light sensitivity and superior image quality compared to earlier modules.

It interfaces via a 200 mm CSI ribbon cable compatible with Raspberry Pi boards from the original Pi through the latest models, and is designed with a milled aluminium lens mount that includes an adjustable focus ring and a standard ¼″‑20 tripod thread.

Designed for versatility, the HQ Camera supports interchangeable lenses in both C- and CS‑mount formats, with a C‑ to CS‑mount adapter included, and can accommodate alternative optics using third-party M12 or other lens adapters.

• Sony IMX477R stacked, back-illuminated sensor, 12.3 megapixels, 7.9 mm sensor diagonal, 1.55 μm × 1.55 μm pixel size
• Output: RAW12/10/8
• Back focus length of lens: 2.6mm–11.8mm (M12 Mount variant), 12.5mm–22.4mm (CS Mount variant)
• Lens sensor format: 1/2.3" (7.9mm) or larger
• IR cut filter: Integrated
• Ribbon cable length: 200 mm
• Tripod mount: 1/4"-20
• Video modes: 1080p50, 720p120
