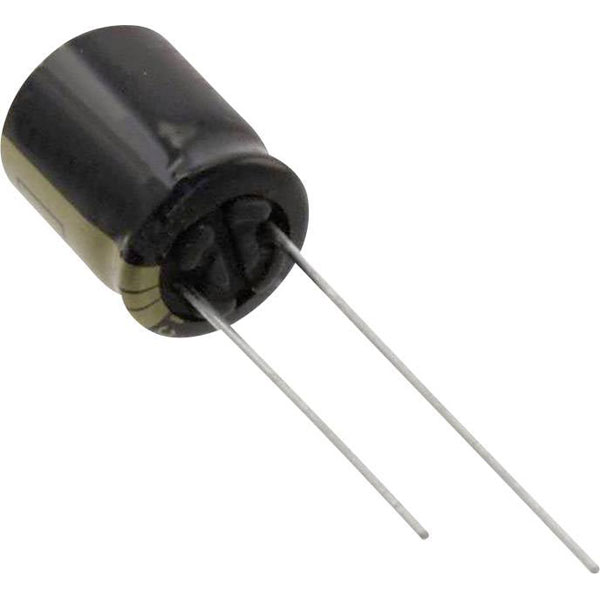

Panasonic EEU-FM1A102 Electrolytic capacitor Radial lead 1000µF 10V 20% 10mm

Panasonic EEU-FM1A102 is a high-performance electrolytic capacitor designed for a wide range of electronic applications. This radial leaded capacitor has a capacitance of 1000µF, a voltage rating of 10V, and a tolerance of 20%. Its compact 10mm diameter body makes it ideal for applications that require high capacitance in limited space, such as power supply filters or decoupling applications within electronic circuits. The EEU-FM1A102 offers reliable performance and stability, which is crucial for maintaining current flow and reducing voltage ripple in electronic systems. Its aluminium electrolytic properties ensure high energy storage and efficient energy release, contributing significantly to the overall efficiency and performance of electrical systems like power converters and audio equipment.

Type	EEU-FM1A102
Capacity (elec.)	1000µF
Content	1
Cross Section	5mm
Diameter	10mm
Dimensions	(Ø) 10 mm
Material	Aluminium
Maximum Temperature	+105°C
Minimum Temperature	-40°C
Nominal Voltage	10V
Product Type	Electrolytic capacitor
Tolerance ±	20%
