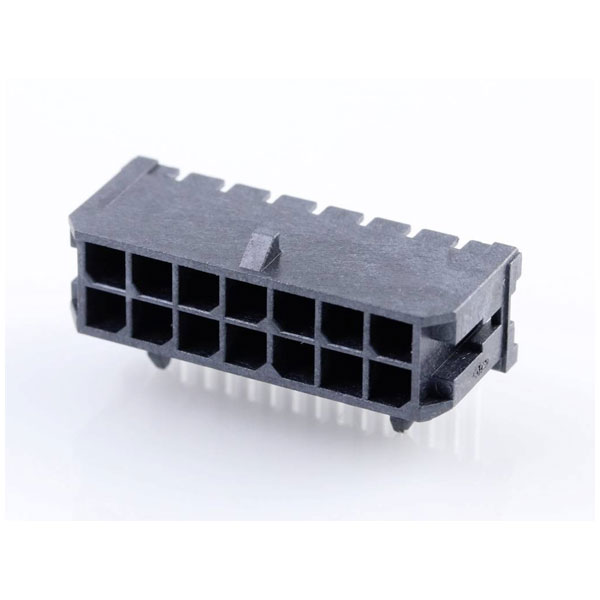

Molex 430451400 Micro-fit Right-angle Header 3mm Pitch 14 Pins

Molex
Order Code:

05-3677

Brand: Molex MPN: 430451400 EAN-13: 2050007113010
Qty Unit Price (Ex VAT)
2+ £2.65
100+ £2.63
375+ £2.61
1500+ £2.59
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
109 in stock, despatched in 4 working days

This Molex built-in pin strip features 14 pins with a contact spacing of 3 mm, ideal for standard electrical connections. Manufactured by Molex, it is supplied in a tray packaging, ensuring safe and convenient handling. Typically used in electronic assemblies, it is suitable for circuit board mating and wiring applications.
Board contact surface Tin
Case Material High temperature resistant thermoplastic
Connection Soldering
Connector coating thickness 0.254µm
Connector contact surface Tin
Connector orientation Parallel (to the PCB)
Contact Material Brass
CS 3mm
Engineering Part No 43045-1400
Engineering Series Name MICRO-FIT HDR ASSY
Engineering Series No 43045
Factory colour Black
Max. temperature +105°C
Min. temperature -40°C
Misc Attribute Molex MOL Power & Signal Sol.
Nominal Current 8.5A
Nominal current - rounded value 8.5A
Nominal Voltage 600V
Number of Rows 2
Packaging Type Tray
Total number of pins 14
Type Built-in pin strip (standard)
