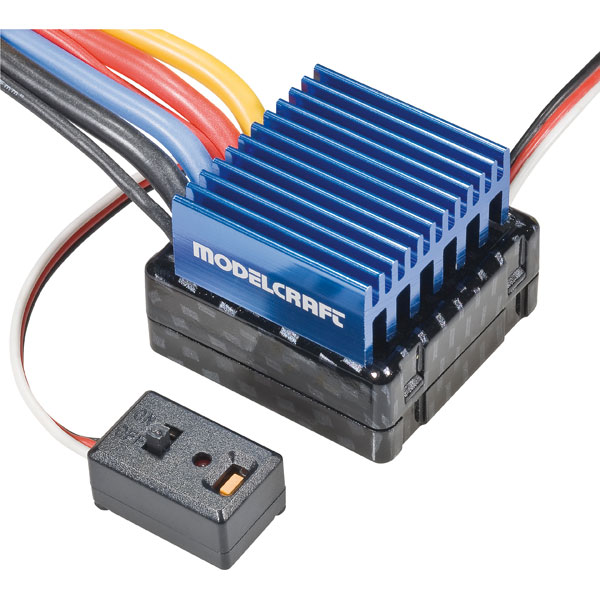

Modelcraft B4250 Speed Controller 200A

Thanks to the modern high-power MOSFETs, the Modelcraft Speed Controller 200A gets on with almost every motor of the 380 series. The generously dimensioned aluminium heat sinks provide for a reliable heat dissipation. Equipped with a fully automatic detection of the neutral position, along with a triple security system (temperature switch-off/overload switch-off/short-circuit switch-off).

Numerous programming function rewind speed (over, low, medium, high), acceleration (adjustable in 8 levels), automatic brakes in neutral setting/drag brake (in 7 levels adjustable ), battery-Typ (NiMH/NiCd, LiPo 2S, LiFe). Plug-system: battery: Tamiya, remote control: JR/Futaba, motor: 4 mm round plug.

• Anodised aluminium heat-sink
• LiPo- & LiFe-suitable
• Noble design casing in Carbon look
• Two-coloured set-up LED

Includes: direction controller and operating instructions.

Supply Voltage	6.6 to 8.4V
Dimensions	(W x H x D) 34 x 30 x 36mm
BEC data	6 V/2A
Clock Frequency	1.0kHz
Connector system	JR/Futaba
Forward / reverse / brake	Yes/Yes/Yes
Motor limit	10 turns
Number of NiCd/NiMH cells	6-7
Specification	10 turns
