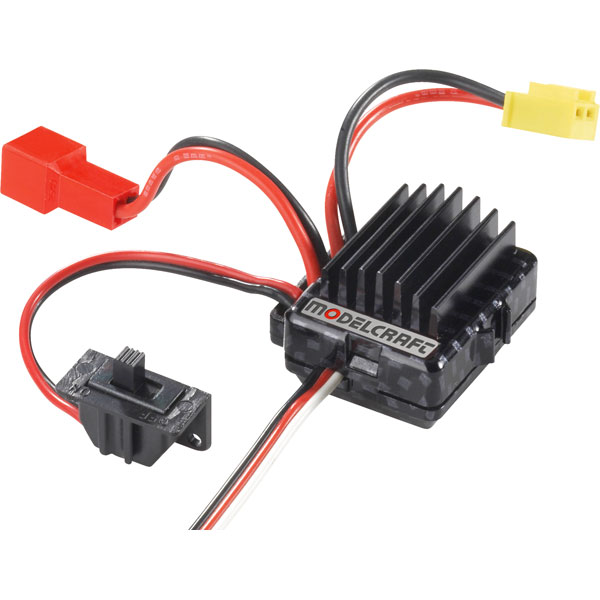

Modelcraft B4230 Carbon Series Drive Controller Microcar

Thanks to the modern high-power MOSFETs, the Modelcraft Drive Controller Microcar gets on with almost every motor of the 380 series. The generously dimensioned aluminium heat sinks provide for a reliable heat dissipation.
Equipped with a fully automatic detection of the neutral position, along with a triple security system (temperature switch-off/overload switch-off/short-circuit switch-off).

• Anodised aluminium heat-sink
• Ready to connect
• Design housing in carbon look
• Two-coloured set-up LED
• Plug system: battery: micro-car, remote control: JR/Futaba, motor: micro car

Includes: direction controller and operating instructions.

Supply Voltage	7.2 to 8.4V
Dimensions	(L x W x H) 29 x 27 x 20mm
BEC data	5V/1A
Clock Frequency	1.0kHz
Connector system	JR/Futaba
Continuous current	25A
Forward / reverse / brake	Yes/Yes/Yes
Load capacity (1s / 30 s / 5 min)	54A/35A/25A
Motor limit	20 turns (380-series motors)
Number of NiCd/NiMH cells	6-7
Specification	Micro
