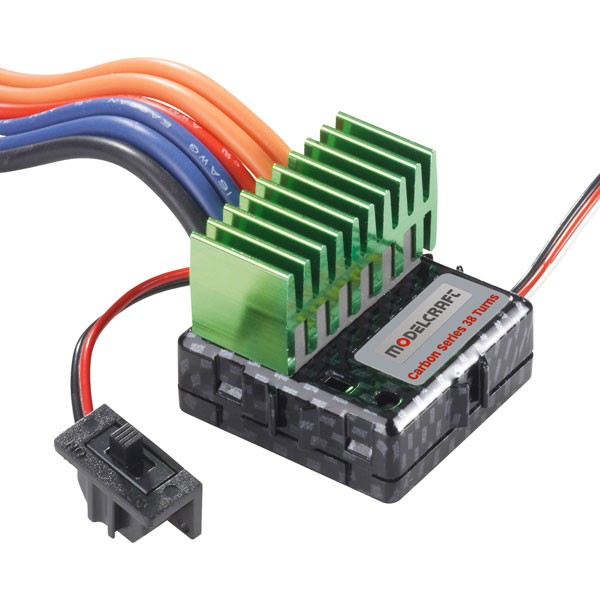

Modelcraft B4220 Carbon Series Ride Control Crawler

Thanks to the modern high-power MOSFETs, the Modelcraft Ride Control Crawler gets on with almost every motor of the 380 series. The generously dimensioned aluminium heat sinks provide for a reliable heat dissipation. Equipped with a fully automatic detection of the neutral position, along with a triple security system (temperature switch-off/overload switch-off/short-circuit switch-off).

• Anodised aluminium heat-sink
• Ready to connect
• Design housing in carbon look
• Two-coloured set-up LED
• Plug system: battery: micro-car, remote control: JR/Futaba, motor: micro car

Not suitable for Crawler-Vehicles when the throttle lever is released by the controller ( neutral position), the engine automatically slows down! This will prevent the vehicle from rolling on a slope.
Includes: direction controller and operating instructions.

Supply Voltage	7.2 to 8.4V
Dimensions	(L x W x H) 33.5 x 34.5 x 30.5mm
BEC data	5V/1A
Clock Frequency	1.0kHz
Connector system	JR/Futaba
Continuous current	35A
Forward / reverse / brake	Yes/Yes
Load capacity (1s / 30 s / 5 min)	75A/50A/35A
Motor limit	38 Turns
Number of NiCd/NiMH cells	6-7
Specification	Twin (2 motors)
