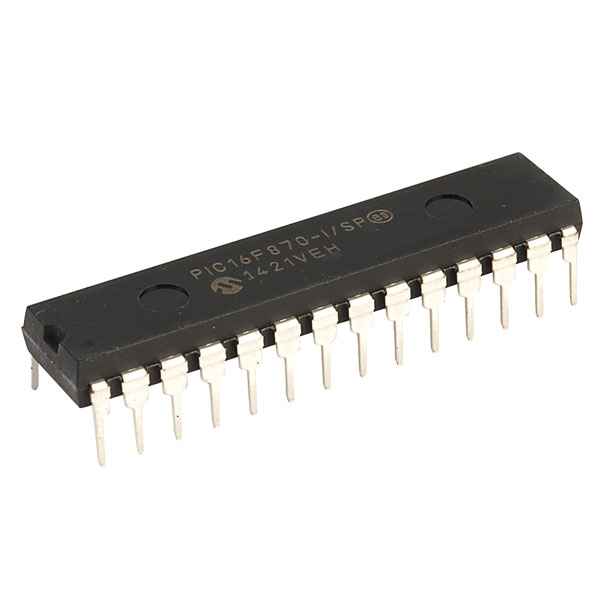

Microchip PIC16F870-I/SP Microcontroller

A mid-range CMOS flash-based 8-bit microcontroller with 200ns instruction execution. Easy-to-program with only 35 single word instructions. Features of this family include EEPROM data, self programming, an ICD, 10-bit ADC, two additional timers and USART, WDT with on-chip RC oscillator, in-circuit serial programming via two pins and in-circuit debugging via two pins. Ideal for more advanced level A/D applications in automotive, industrial, appliances and consumer applications.

• 8-Bit CMOS FLASH microcontroller
• PIC16F87x family
• 2V to 5.5V supply voltage
• 3.5KB flash memory
• 64Bytes EEPROM memory
• 128Bytes SRAM data memory
• 22 I/O pins
• 5ch x 10Bit ADC channels
• 3 timers
• 1 PWM channel
• 20MHz clock speed
• USART interface
• 28-SPDIP case
