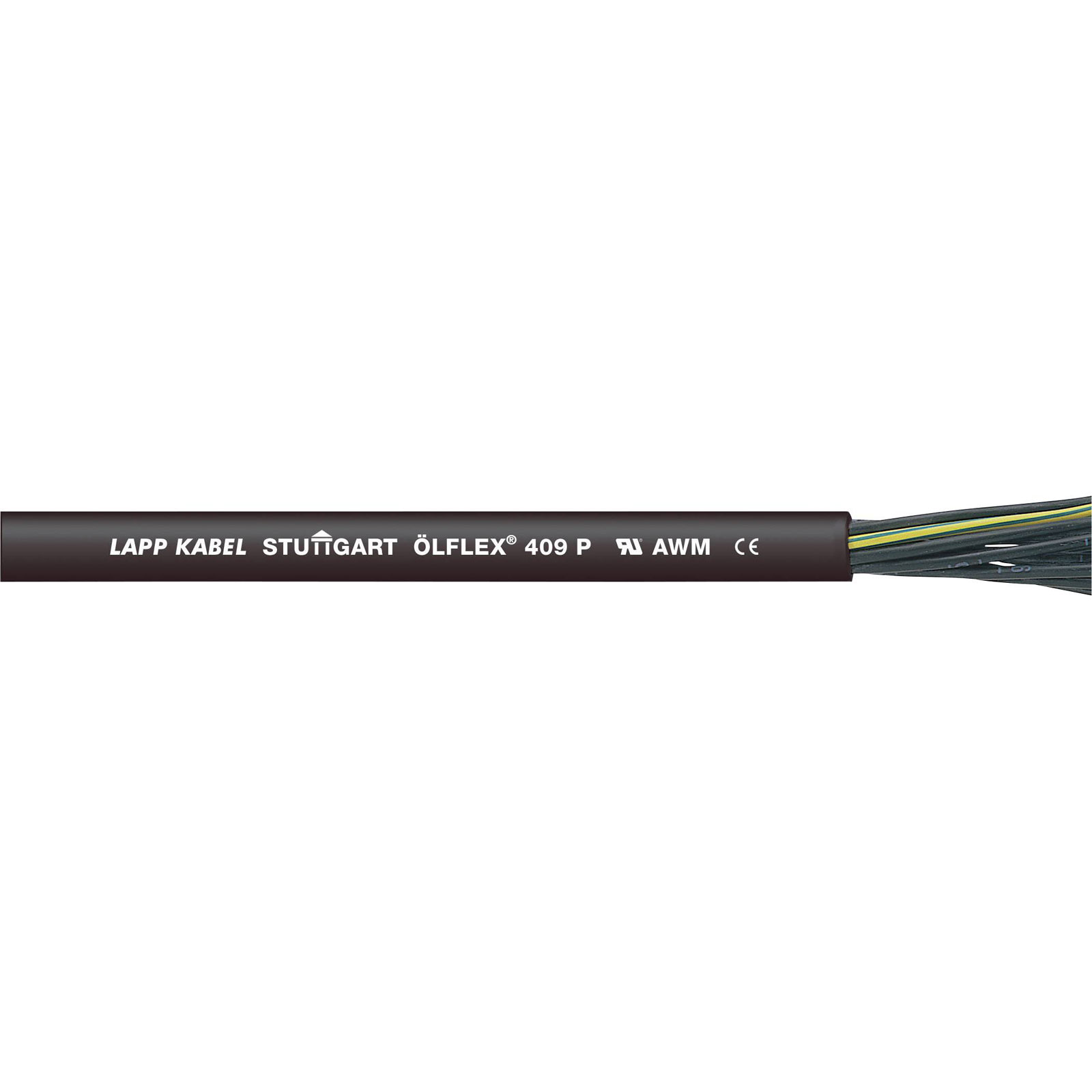

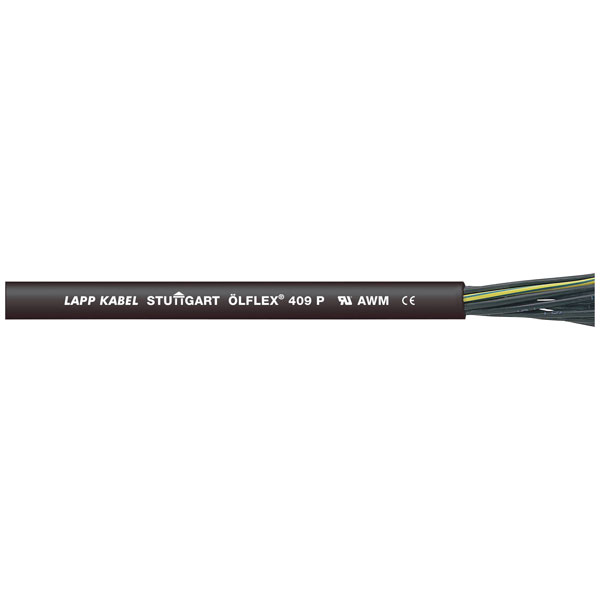

Ölflex ® 409 P lines are for the North American market certified connection and control cables for occasionally flexible use and fixed laying at average mechanical load. They are suitable for use in dry, damp and wet rooms. In the open only under consideration of the temperature ranges can be used. At room temperature, they are resistant to a large extent to the action of acids, bases and specific oils.
The outer sheath is resistant to high mechanical stress, in particular scouring and grinding stress, cut-proof, microbes and hydrolysis resistant. They are suitable for free, not constantly recurring movement
Without tensile load or forced guiding.
.
| Type |
Control Lead |
| Bend radius (no. of ODs for fixed installation) |
4 |
| Bend radius (no. of ODs for flexible installation) |
12.5 |
| Cable type |
ÖLFLEX® 409 P |
| Core layout |
Finely stranded according to VDE 0295,
Class 5 / IEC 60228 |
| Cross section |
3 G 0.75 mm² |
| Cross section (each core) |
0.75mm² |
| Factory colour |
Black |
| Halogen-free |
No |
| Insulation material |
Polyurethane |
| Manufacturer part # |
1311103 |
| Max. length sold by the metre |
100m |
| Max. temperature range (fixed installation) |
+80°C |
| Max. temperature range (flexible installation) |
+70°C |
| Min. temperature range (fixed installation) |
-40°C |
| Min. temperature range (flexible installation) |
-5°C |
| Misc Attribute |
1311103 |
| No. of leads |
3 G |
| Nominal voltage |
500V |
| Nominal voltage U0 |
300V |
| Outside Ø |
7.20mm |
| Packaged |
Yes |
| Sold per metre |
No |
| Test voltage |
4000V |
| Wire ID code |
Black with white numbers according to VDE 0293-1 |
